Q3. (a) (b) Sketch the P(pressure)-V(volume) and T(Temperature)-S(entropy) diagrams of an air standard diesel cycle and

Post by answerhappygod »

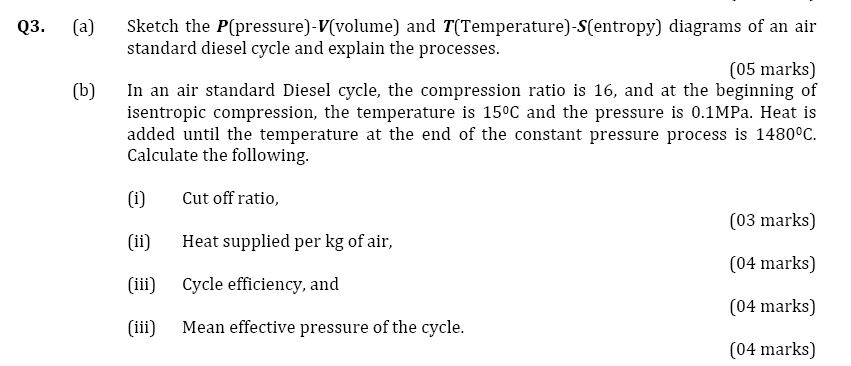

Q3 A B Sketch The P Pressure V Volume And T Temperature S Entropy Diagrams Of An Air Standard Diesel Cycle And 1
Q3 A B Sketch The P Pressure V Volume And T Temperature S Entropy Diagrams Of An Air Standard Diesel Cycle And 1 (93.7 KiB) Viewed 52 times
Q3. (a) (b) Sketch the P(pressure)-V(volume) and T(Temperature)-S(entropy) diagrams of an air standard diesel cycle and explain the processes. (05 marks) In an air standard Diesel cycle, the compression ratio is 16, and at the beginning of isentropic compression, the temperature is 15°C and the pressure is 0.1MPa. Heat is added until the temperature at the end of the constant pressure process is 1480°C. Calculate the following. (i) Cut off ratio, (03 marks) (ii) Heat supplied per kg of air, (04 marks) (iii) Cycle efficiency, and (04 marks) (iii) Mean effective pressure of the cycle. (04 marks)
