B8. In the circuit shown in Figure B8, the potential difference between A and B is 12V. 25) 8x10 20 302 + 602 2002 Figur

Post by answerhappygod »

B8 In The Circuit Shown In Figure B8 The Potential Difference Between A And B Is 12v 25 8x10 20 302 602 2002 Figur 1
B8 In The Circuit Shown In Figure B8 The Potential Difference Between A And B Is 12v 25 8x10 20 302 602 2002 Figur 1 (115.74 KiB) Viewed 38 times

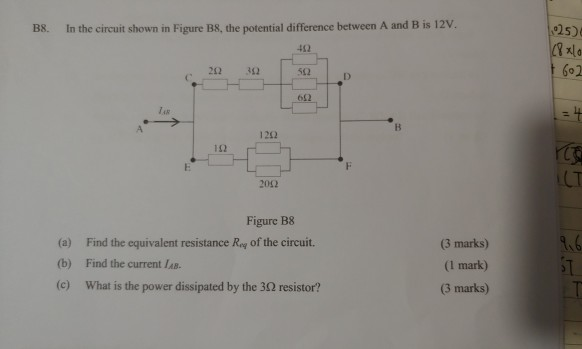

B8. In the circuit shown in Figure B8, the potential difference between A and B is 12V. 25) 8x10 20 302 + 602 2002 Figure B8 (a) Find the equivalent resistance Reg of the circuit. (b) Find the current les (c) What is the power dissipated by the 3 resistor? (3 marks) (1 mark) (3 marks)
