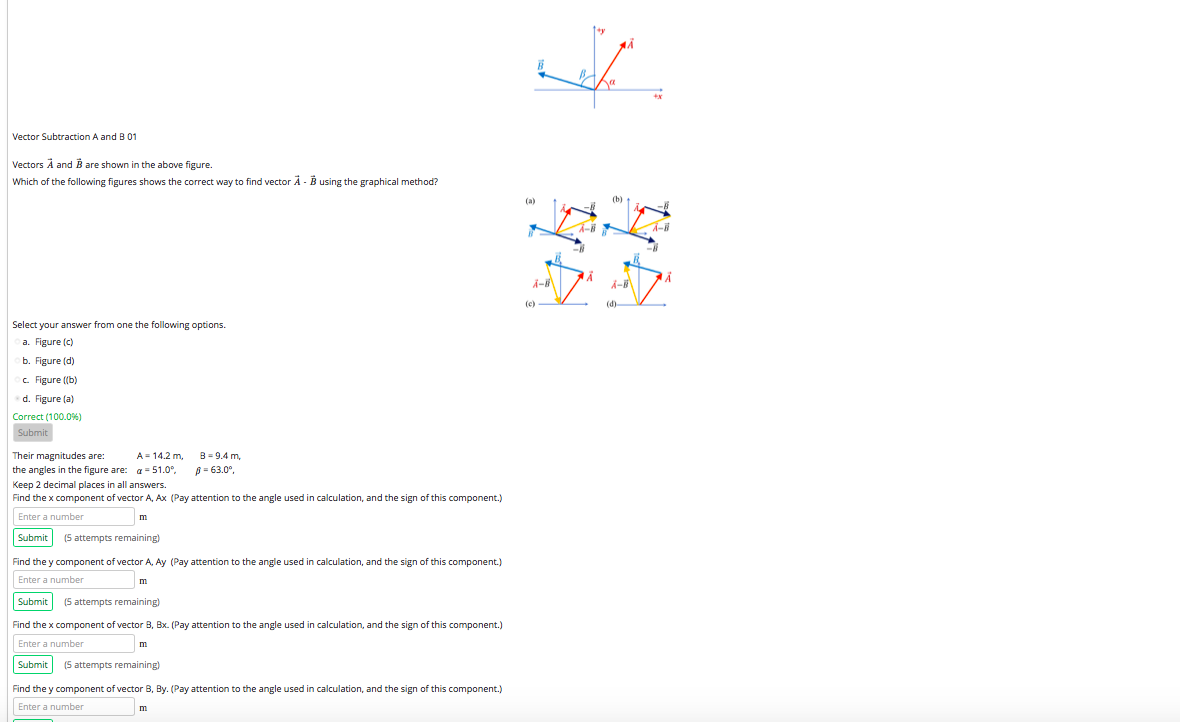

Vector Subtraction A and B 01 Vectors A and B are shown in the above figure. Which of the following figures shows the correct way to find vector A - B using the graphical method? Select your answer from one the following options. a. Figure (c) b. Figure (d) c Figure [(b) d. Figure (a) Correct (100.0%) Submit Their magnitudes are: A = 14.2 m, B = 9.4 m, the angles in the figure are: a = 51.0°, 6 = 63.0°, Keep 2 decimal places in all answers. Find the x component of vector A, Ax (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number m Submit 15 attempts remaining) Find they component of vector A. Ay (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number m Submit (5 attempts remaining) Find the x component of vector B, Bx. (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number m Submit (5 attempts remaining) Find they component of vector 3, By. (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number
Find they component of vector A Ay (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number Submit 15 attempts remaining) Find the x component of vector B, Bx. (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number m Submit 15 attempts remaining) Find they component of vector 3, By. (Pay attention to the angle used in calculation, and the sign of this component.) Enter a number Submit 15 attempts remaining) in the following steps. The vector 1. Bis labeled as vector R. You will find the magnitude and the direction of vector Note: in this problem you are lead step-by-step. But in exams you must know the steps. Calculate the x component of vector R. Rx as: Rx = Ax - Bx Enter a number Submit (5 attempts remaining) Calculate the y component of vector RRy as: Ry - Ay - By Enter a number Submit 15 attempts remaining) Calculate magnitude of vector R. Enter a number Submit 15 attempts remaining) Find the direction of the vector R. The direction is represented by a counterclockwise angle from the +x axis. Enter a number Submit 15 attempts remaining)
