Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C = 26.5 uF, C2 = 45.5 u

[answerhappygod]

Four Capacitors Are Arranged In The Circuit Shown In The Figure The Capacitors Have The Values C 26 5 Uf C2 45 5 U 1 (52.79 KiB) Viewed 42 times

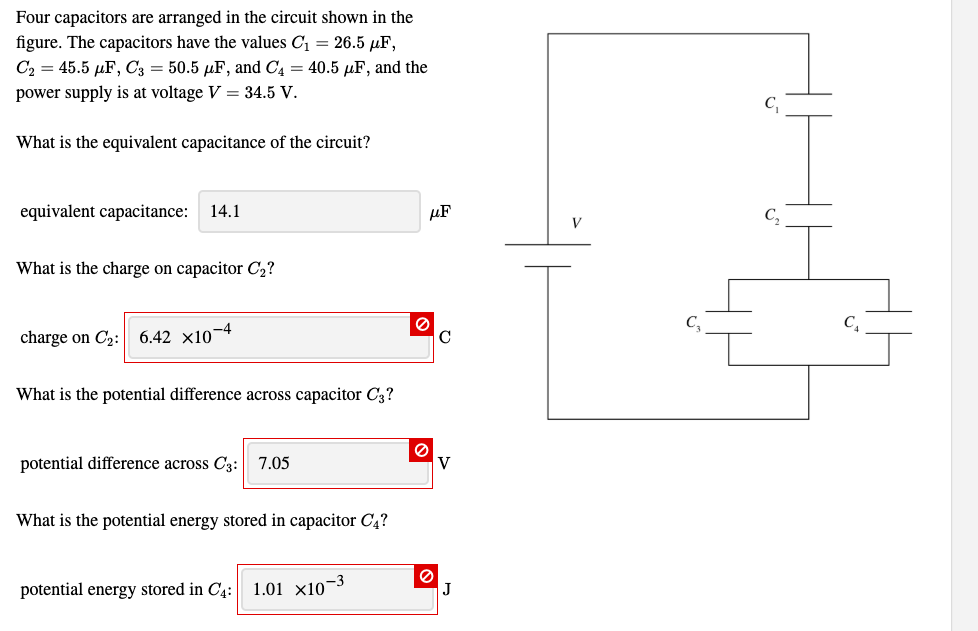

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C = 26.5 uF, C2 = 45.5 uF, C3 = 50.5 uF, and C4 = 40.5 4F, and the power supply is at voltage V = 34.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: 14.1 What is the charge on capacitor C2? charge on C: 6.42 x10-4 What is the potential difference across capacitor C3? potential difference across C3: 7.05 What is the potential energy stored in capacitor C4? potential energy stored in C4: 1.01 X103
