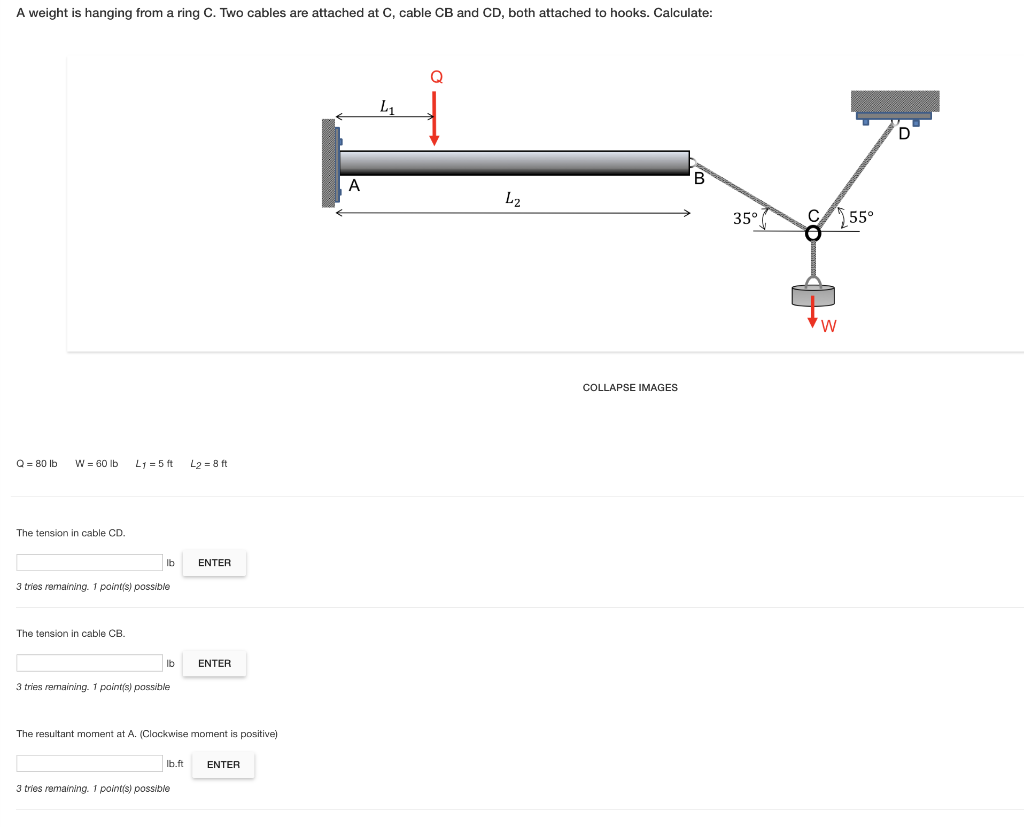

- A Weight Is Hanging From A Ring C Two Cables Are Attached At C Cable Cb And Cd Both Attached To Hooks Calculate 350 1 (55.36 KiB) Viewed 41 times
A weight is hanging from a ring C. Two cables are attached at C, cable CB and CD, both attached to hooks. Calculate: 350
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A weight is hanging from a ring C. Two cables are attached at C, cable CB and CD, both attached to hooks. Calculate: 350
A weight is hanging from a ring C. Two cables are attached at C, cable CB and CD, both attached to hooks. Calculate: 350 155 COLLAPSE IMAGES Q = 80 lb W = 60 lb L1 = 5 ft L2 = 8 ft The tension in cable CD. lb ENTER 3 tries remaining. 1 points) possible The tension in cable CB. ENTER 3 tries remaining. 1 points) possible The resultant moment at A. (Clockwise moment is positive) Ib.ft ENTER 3 tries remaining. 1 points) possible
