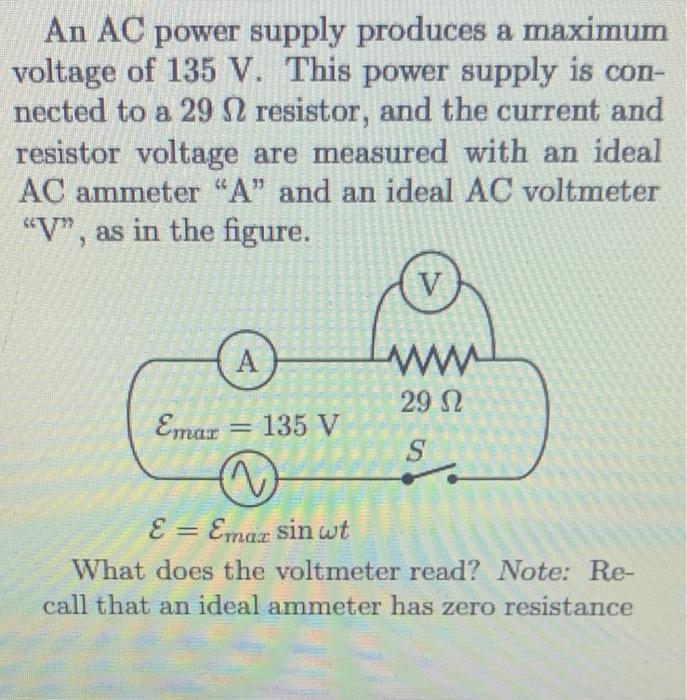

An AC power supply produces a maximum voltage of 135 V. This power supply is con- nected to a 29 12 resistor, and the current and resistor voltage are measured with an ideal AC ammeter "A" and an ideal AC voltmeter "V", as in the figure. V A w 29 22 Emar 135 V S E = Emas sin wt What does the voltmeter read? Note: Re- call that an ideal ammeter has zero resistance

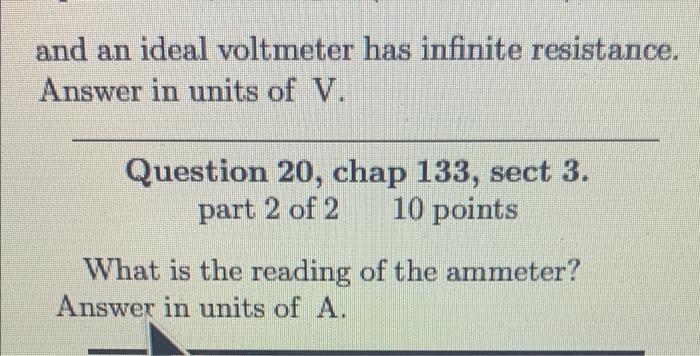

and an ideal voltmeter has infinite resistance. Answer in units of V. Question 20, chap 133, sect 3. part 2 of 2 10 points What is the reading of the ammeter? Answer in units of A.
