The pathway for a binary electrical signal between gates in an integrated circuit can be modeled as an RC circuit, as sh

Post by answerhappygod »

The Pathway For A Binary Electrical Signal Between Gates In An Integrated Circuit Can Be Modeled As An Rc Circuit As Sh 1
The Pathway For A Binary Electrical Signal Between Gates In An Integrated Circuit Can Be Modeled As An Rc Circuit As Sh 1 (82.44 KiB) Viewed 51 times

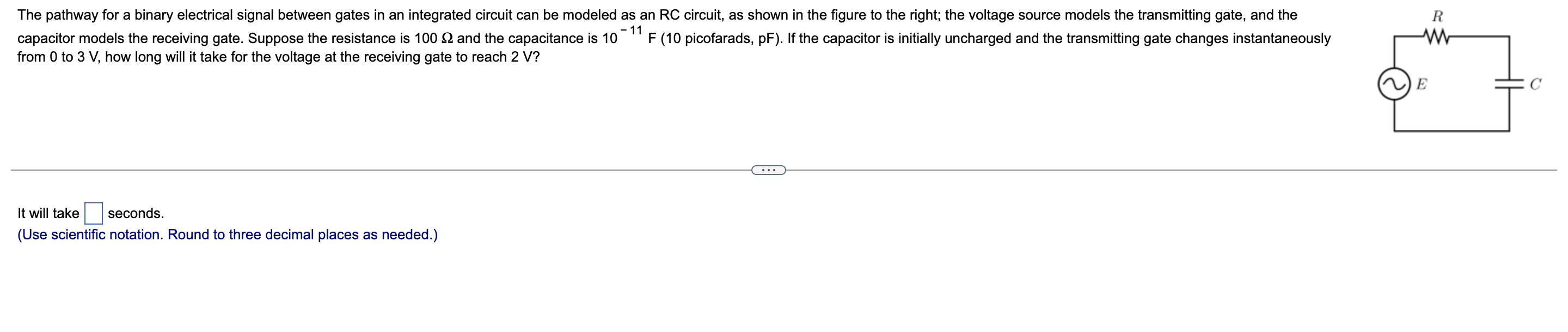

The pathway for a binary electrical signal between gates in an integrated circuit can be modeled as an RC circuit, as shown in the figure to the right; the voltage source models the transmitting gate, and the - 11 capacitor models the receiving gate. Suppose the resistance is 100 22 and the capacitance is 10 F (10 picofarads, pF). If the capacitor is initially uncharged and the transmitting gate changes instantaneously from 0 to 3 V, how long will it take for the voltage at the receiving gate to reach 2 V? R W It will take seconds. (Use scientific notation. Round to three decimal places as needed.)
