In the circuit above, the battery of electromotive force (emf) E is connected to two long straight parallel wires, which

Post by answerhappygod »

In The Circuit Above The Battery Of Electromotive Force Emf E Is Connected To Two Long Straight Parallel Wires Which 1
In The Circuit Above The Battery Of Electromotive Force Emf E Is Connected To Two Long Straight Parallel Wires Which 1 (14.77 KiB) Viewed 39 times

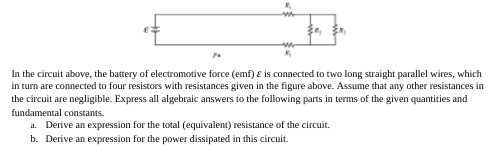

In the circuit above, the battery of electromotive force (emf) E is connected to two long straight parallel wires, which in turn are connected to four resistors with resistances given in the figure above. Assume that any other resistances in the circuit are negligible. Express all algebraic answers to the following parts in terms of the given quantities and fundamental constants. a. Derive an expression for the total (equivalent) resistance of the circuit. b. Derive an expression for the power dissipated in this circuit.
