2. Four lightbulbs are connected in a circuit with a 24 V battery as shown to the right. a. Determine the average change

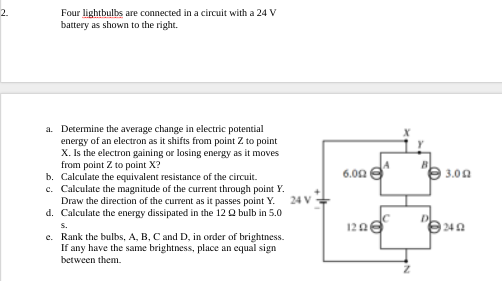

2. Four lightbulbs are connected in a circuit with a 24 V battery as shown to the right. a. Determine the average change in electric potential energy of an electron as it shifts from point Z to point X. Is the electron gaining or losing energy as it moves from point Z to point X? b. Calculate the equivalent resistance of the circuit. c. Calculate the magnitude of the current through point Y. Draw the direction of the current as it passes point Y. 24 V d. Calculate the energy dissipated in the 12 bulb in 5.0 3 6.00 3.00 0 12 ne "240 c. Rank the bulbs, A, B, C and D, in order of brightness. If any have the same brightness, place an equal sign between them.
