The figure below shows forces acting at various points on a metal cylinder. The angles a = 48°, B = 27°, y = 15º. The le
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The figure below shows forces acting at various points on a metal cylinder. The angles a = 48°, B = 27°, y = 15º. The le

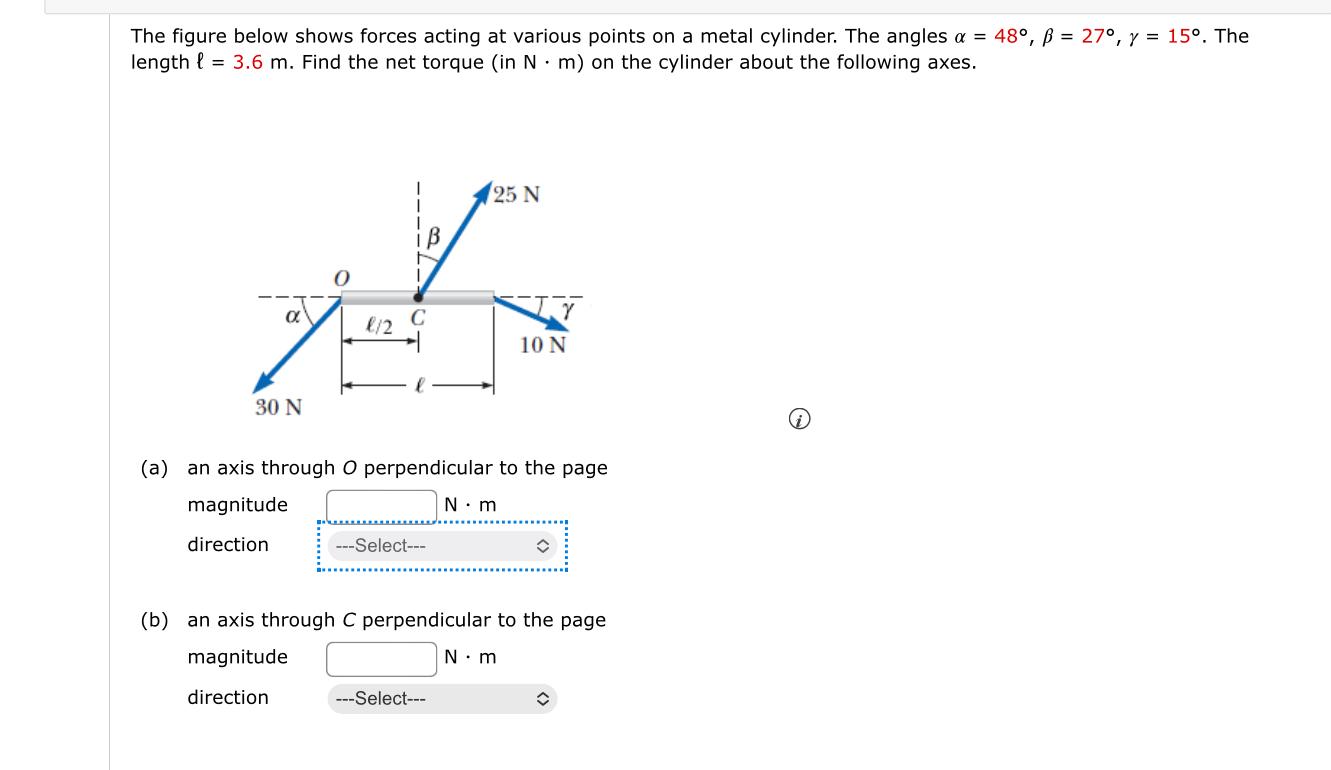

The figure below shows forces acting at various points on a metal cylinder. The angles a = 48°, B = 27°, y = 15º. The length l = 3.6 m. Find the net torque (in N.m) on the cylinder about the following axes. 25 N iB α 1/2 Ir 10 N 30 N 0 (a) an axis through O perpendicular to the page magnitude N·m direction ---Select--- (b) an axis through C perpendicular to the page magnitude N. m direction ---Select--
