IV. Calculations and Results A. Plot A vs λ for Solution G (A on the y axis, λ on the x axis.) B. Beer's Law In solution

[answerhappygod]

1 (32.78 KiB) Viewed 35 times

2 (58.04 KiB) Viewed 35 times

3 (49.5 KiB) Viewed 35 times

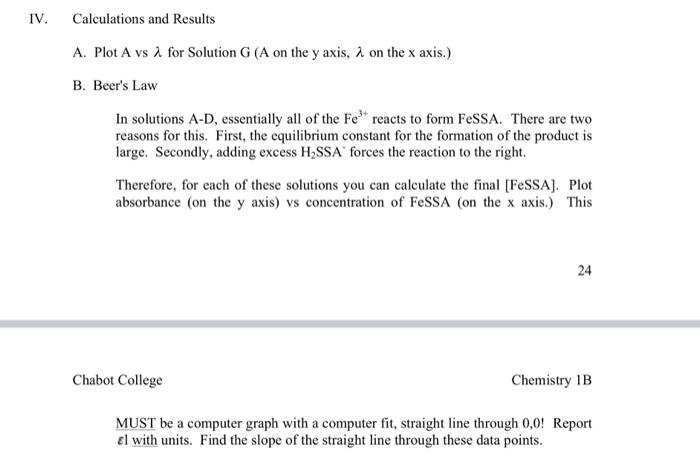

IV. Calculations and Results A. Plot A vs λ for Solution G (A on the y axis, λ on the x axis.) B. Beer's Law In solutions A-D, essentially all of the Fe3+ reacts to form FeSSA. There are two reasons for this. First, the equilibrium constant for the formation of the product is large. Secondly, adding excess H2​SSA∗ forces the reaction to the right. Therefore, for each of these solutions you can calculate the final [FeSSA]. Plot absorbance (on the y axis) vs concentration of FeSSA (on the x axis.) This 24 Chabot College Chemistry 1B MUST be a computer graph with a computer fit, straight line through 0,0 ! Report ε1 with units. Find the slope of the straight line through these data points.

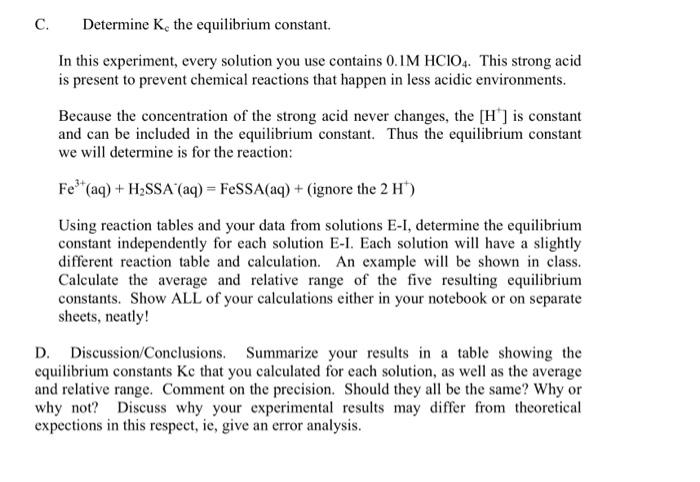

C. Determine Kc​ the equilibrium constant. In this experiment, every solution you use contains 0.1MHClO4​. This strong acid is present to prevent chemical reactions that happen in less acidic environments. Because the concentration of the strong acid never changes, the [H+]is constant and can be included in the equilibrium constant. Thus the equilibrium constant we will determine is for the reaction: Fe3+(aq)+H2​SSA−(aq)=FeSSA( aq )+( ignore the 2H+) Using reaction tables and your data from solutions E-I, determine the equilibrium constant independently for each solution E-I. Each solution will have a slightly different reaction table and calculation. An example will be shown in class. Calculate the average and relative range of the five resulting equilibrium constants. Show ALL of your calculations either in your notebook or on separate sheets, neatly! D. Discussion/Conclusions. Summarize your results in a table showing the equilibrium constants Kc that you calculated for each solution, as well as the average and relative range. Comment on the precision. Should they all be the same? Why or why not? Discuss why your experimental results may differ from theoretical expections in this respect, ie, give an error analysis.

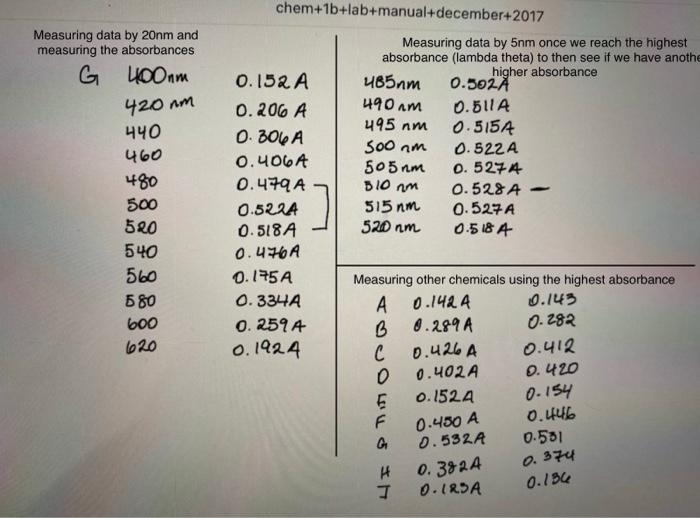

chem+1b+lab+manual+december +2017 Measuring data by 20 nm and measuring the absorbances
