Due to a weak connection, there is a break in the circuit (shown below) between points a and b. If R1=4.96Ω,R2=7.12Ω,
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Due to a weak connection, there is a break in the circuit (shown below) between points a and b. If R1=4.96Ω,R2=7.12Ω,

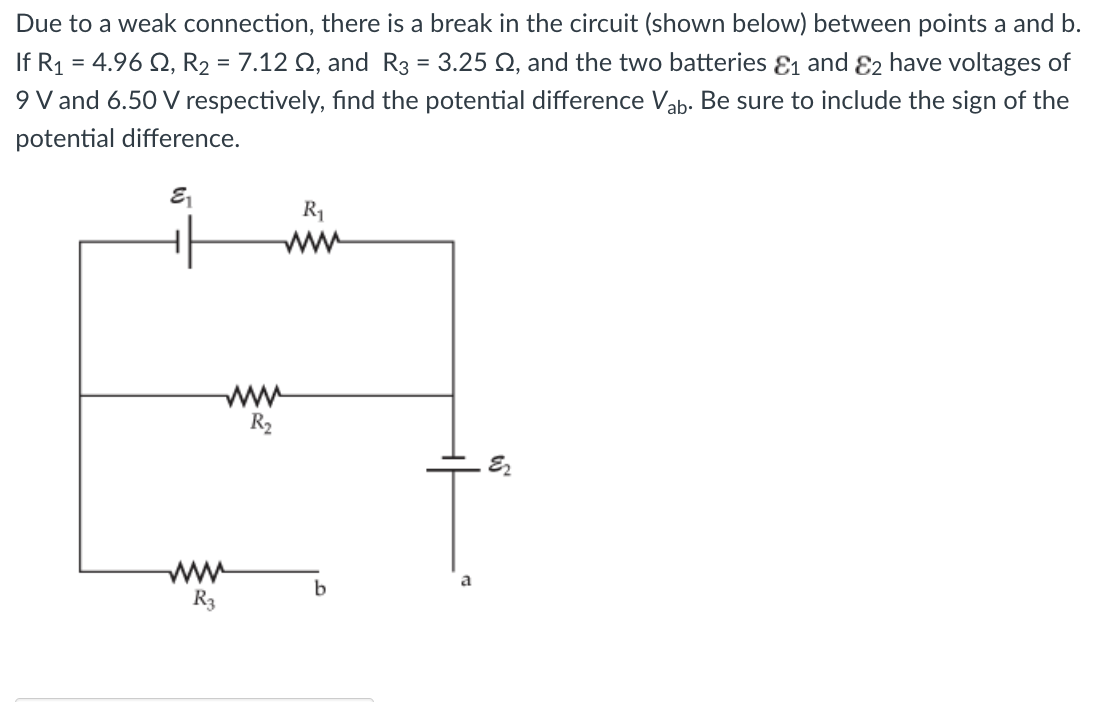

Due to a weak connection, there is a break in the circuit (shown below) between points a and b. If R1=4.96Ω,R2=7.12Ω, and R3=3.25Ω, and the two batteries ε1 and ε2 have voltages of 9 V and 6.50 V respectively, find the potential difference Vab. Be sure to include the sign of the potential difference.
