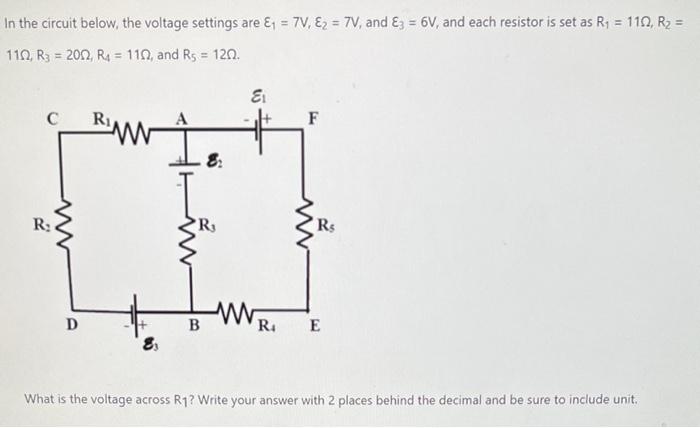

In the circuit below, the voltage settings are ε1=7 V,ε2=7 V, and ε3=6 V, and each resistor is set as R1=11Ω,R2= 11Ω,R3=20Ω,R4=11Ω, and R5=12Ω What is the voltage across R1 ? Write your answer with 2 places behind the decimal and be sure to include unit.

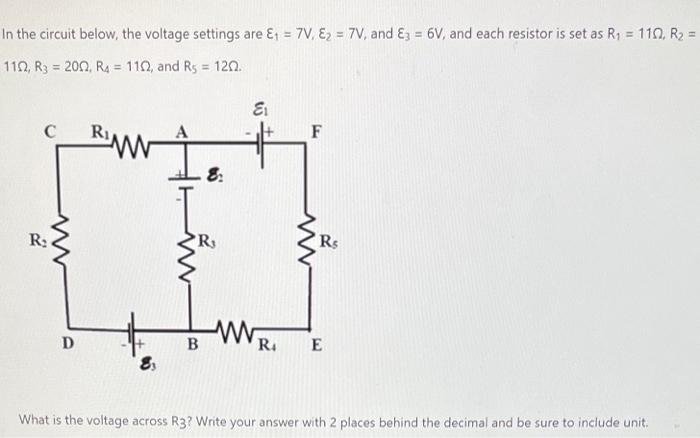

In the circuit below, the voltage settings are ε1=7 V,ε2=7 V, and ε3=6 V, and each resistor is set as R1=11Ω,R2= 11Ω,R3=20Ω,R4=11Ω, and R5=12Ω What is the voltage across R3 ? Write your answer with 2 places behind the decimal and be sure to include unit.

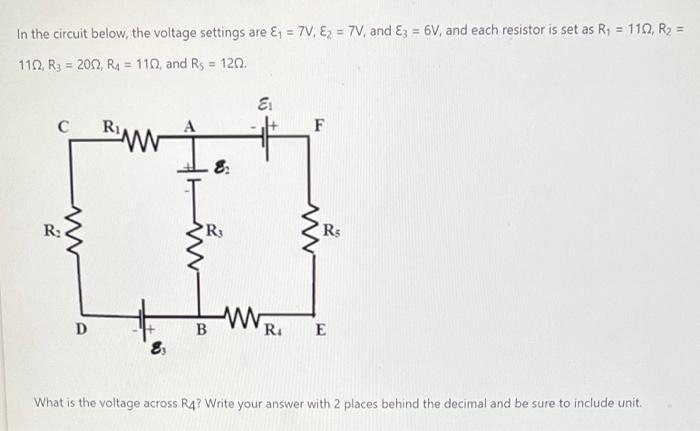

In the circuit below, the voltage settings are ε1=7 V,ε2=7 V, and ε3=6 V, and each resistor is set as R1=11Ω, R2= 11Ω,R3=20Ω,R4=11Ω, and R5=12Ω What is the voltage across R4 ? Write your answer with 2 places behind the decimal and be sure to include unit.

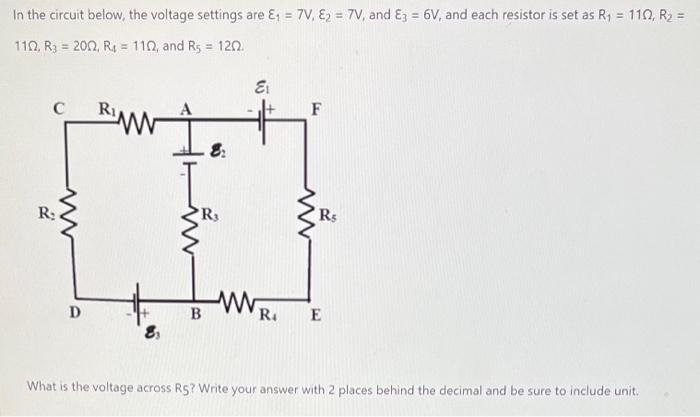

In the circuit below, the voltage settings are ε1=7 V,ε2=7 V, and ε3=6 V, and each resistor is set as R1=11Ω,R2= 11Ω,R3=20Ω,R4=11Ω, and R5=12Ω What is the voltage across R5? Write your answer with 2 places behind the decimal and be sure to include unit.
