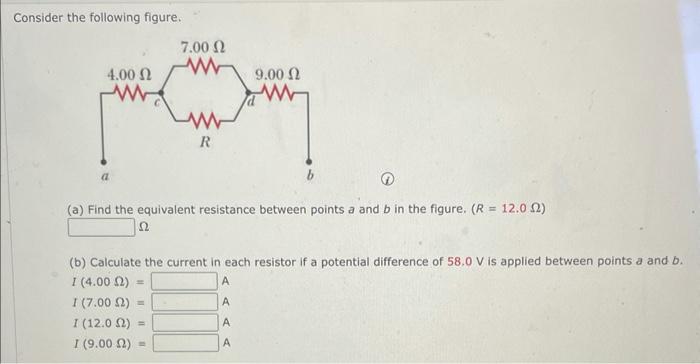

Consider the following figure. (1) (a) Find the equivalent resistance between points a and b in the figure. (R=12.0Ω) Ω
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the following figure. (1) (a) Find the equivalent resistance between points a and b in the figure. (R=12.0Ω) Ω
Consider the following figure. (1) (a) Find the equivalent resistance between points a and b in the figure. (R=12.0Ω) Ω (b) Calculate the current in each resistor if a potential difference of 58.0 V is applied between points a and b. I(4.00Ω)=I(7.00Ω)=I(12.0Ω)=I(9.00Ω)=AAAA
