Four capacitors are connected as shown in the figure below. (C=10.0μF.) (1) (a) Find the equivalent capacitance between

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Four capacitors are connected as shown in the figure below. (C=10.0μF.) (1) (a) Find the equivalent capacitance between

Post by answerhappygod »

1
1 (38.59 KiB) Viewed 42 times

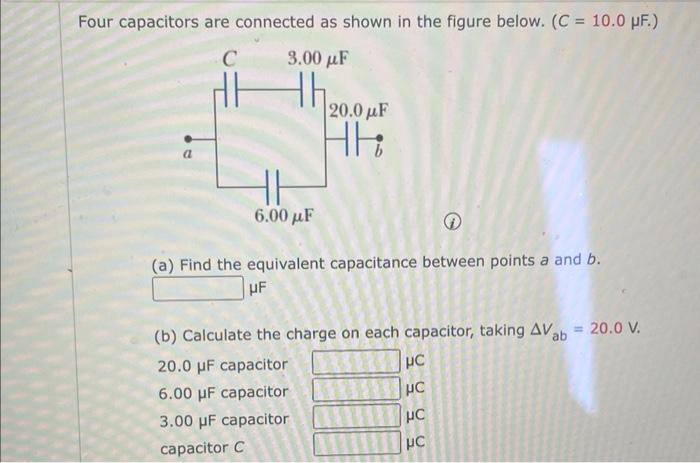

Four capacitors are connected as shown in the figure below. (C=10.0μF.) (1) (a) Find the equivalent capacitance between points a and b. μF (b) Calculate the charge on each capacitor, taking ΔVab​=20.0 V. 20.0μF capacitor 6.00μF capacitor 3.00μF capacitor  capacitor C​μCμCμCμC​
