Find the equivalent resistance between points A and B in the drawing. Assume R1=2.20Ω,R2=5.90 Ω,R3=1.50Ω,R4=3.10Ω,R5
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Find the equivalent resistance between points A and B in the drawing. Assume R1=2.20Ω,R2=5.90 Ω,R3=1.50Ω,R4=3.10Ω,R5

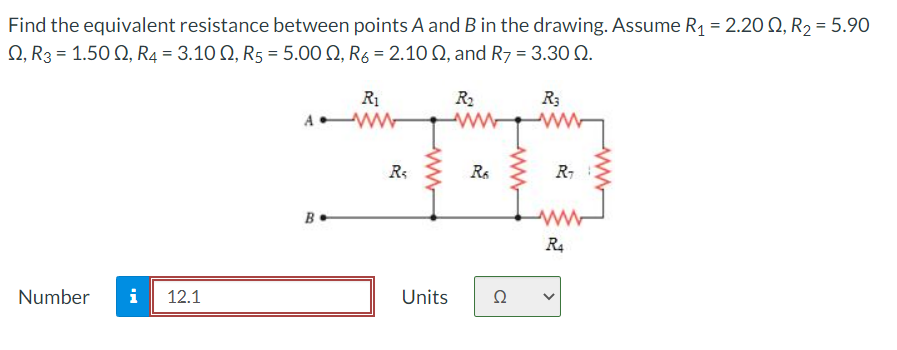

Find the equivalent resistance between points A and B in the drawing. Assume R1=2.20Ω,R2=5.90 Ω,R3=1.50Ω,R4=3.10Ω,R5=5.00Ω,R6=2.10Ω, and R7=3.30Ω.
