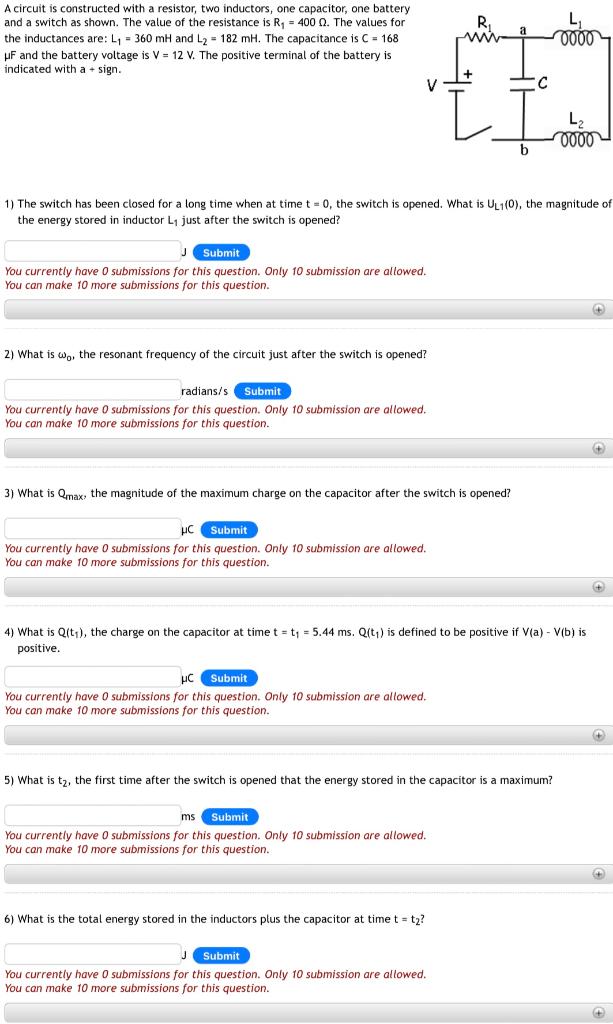

- A Circuit Is Constructed With A Resistor Two Inductors One Capacitor One Battery And A Switch As Shown The Value Of 1 (93.56 KiB) Viewed 35 times
A circuit is constructed with a resistor, two inductors, one capacitor, one battery and a switch as shown. The value of the resistance is R1=400Ω. The values for the inductances are: L1=360mH and L2=182mH. The capacitance is C=168 μF and the battery voltage is V=12 V. The positive terminal of the battery is indicated with a + sign. 1) The switch has been closed for a long time when at time t=0, the switch is opened. What is UL1(0), the magnitude o the energy stored in inductor L1 just after the switch is opened? You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 2) What is ω0, the resonant frequency of the circuit just after the switch is opened? radians/s You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 3) What is Qmax, the magnitude of the maximum charge on the capacitor after the switch is opened? μC You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 4) What is Q(t1), the charge on the capacitor at time t=t1=5.44 ms.Q(t1) is defined to be positive if V(a) - V(b) is positive. μC You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 5) What is t2, the first time after the switch is opened that the energy stored in the capacitor is a maximum? ms You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 6) What is the total energy stored in the inductors plus the capacitor at time t=t2 ? J You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question.
