- For Each Structure Shown Compute The Reactions And Draw Shear And Bending Moment Diagrams Indicate Which Are Positive 1 (187.67 KiB) Viewed 44 times
For each structure shown, compute the reactions and draw shear and bending moment diagrams. Indicate which are positive
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
For each structure shown, compute the reactions and draw shear and bending moment diagrams. Indicate which are positive

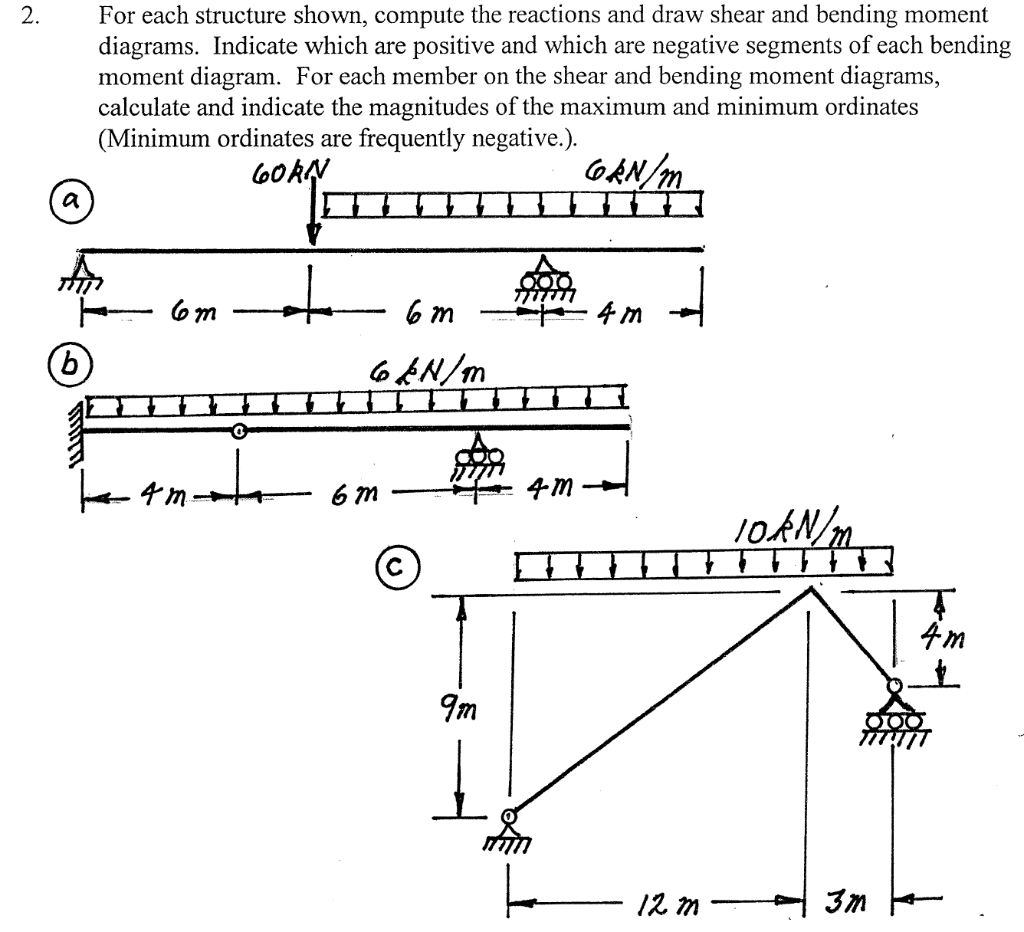

For each structure shown, compute the reactions and draw shear and bending moment diagrams. Indicate which are positive and which are negative segments of each bending moment diagram. For each member on the shear and bending moment diagrams, calculate and indicate the magnitudes of the maximum and minimum ordinates (Minimum ordinates are frequently negative.).
