Group Problem Solving Given A 10 Kg Block Is Subjected To A Force F 500 N A Spring Of Stiffness K 500 N M Is Mounted A 1 (61.27 KiB) Viewed 26 times
Group Problem Solving Given A 10 Kg Block Is Subjected To A Force F 500 N A Spring Of Stiffness K 500 N M Is Mounted A 2 (61.27 KiB) Viewed 26 times

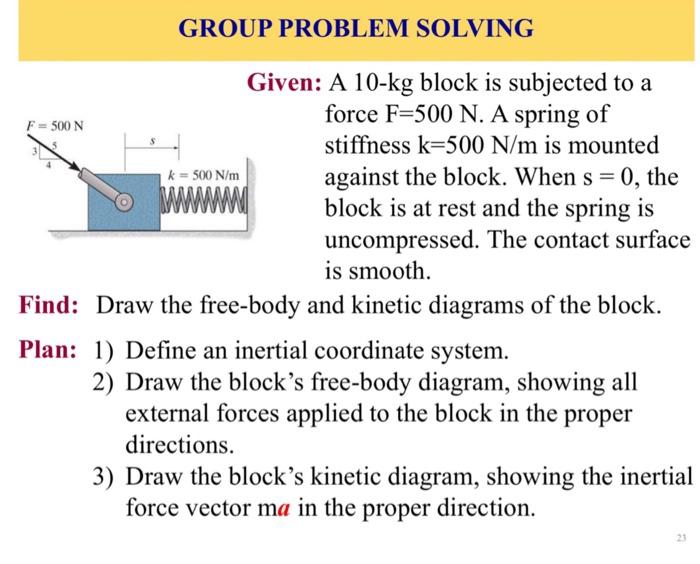

GROUP PROBLEM SOLVING Given: A 10-kg block is subjected to a force F=500 N. A spring of stiffness k=500 N/m is mounted against the block. When s=0, the block is at rest and the spring is uncompressed. The contact surface is smooth. Find: Draw the free-body and kinetic diagrams of the block. Plan: 1) Define an inertial coordinate system. 2) Draw the block's free-body diagram, showing all external forces applied to the block in the proper directions. 3) Draw the block's kinetic diagram, showing the inertial force vector ma in the proper direction.
