Just show me how to get the length and width of the footing..
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Just show me how to get the length and width of the footing..
Just show me how to get the length and width of the footing..

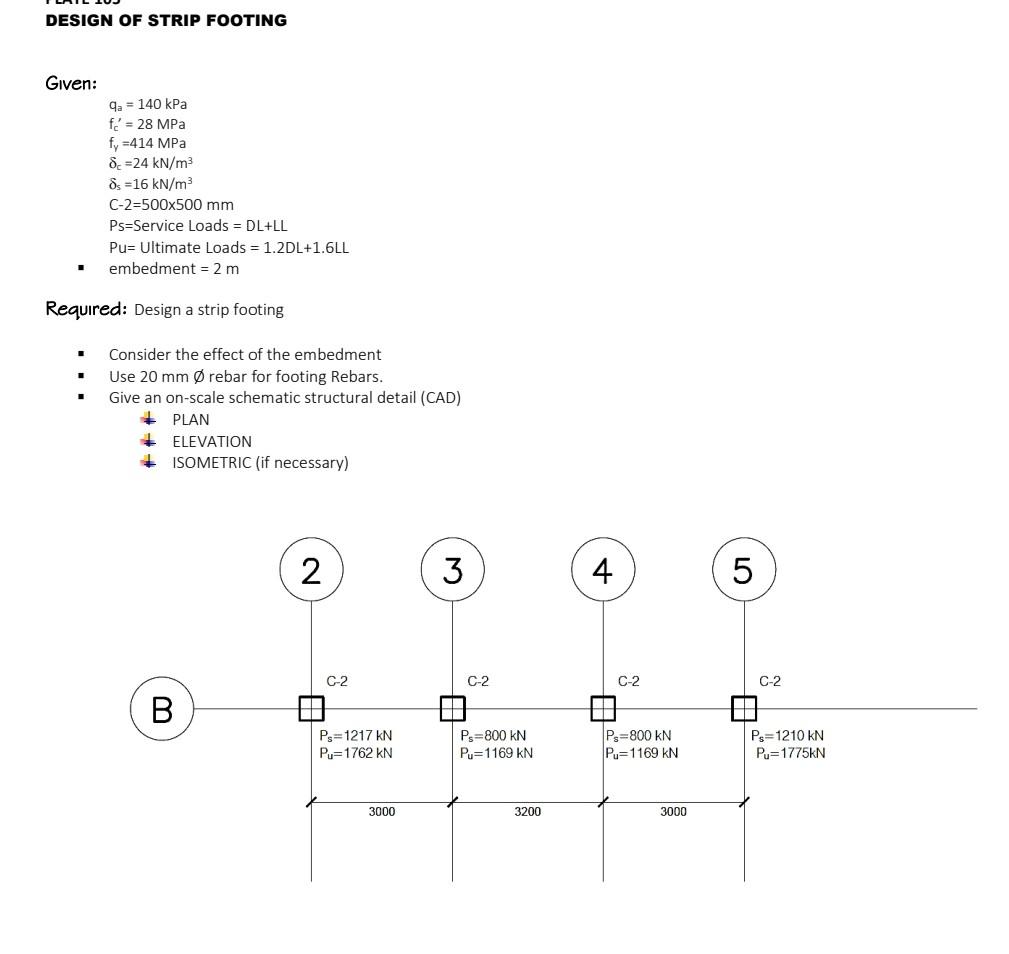

DESIGN OF STRIP FOOTING Given: qa=140kPafc′=28MPafy=414MPaδc=24kN/m3δs=16kN/m3C−2=500×500 mmPs= Service Loads =DL+LLPu= Ultimate Loads =1.2DL+1.6LL embedment =2 m Required: Design a strip footing - Consider the effect of the embedment - Use 20 mm∅ rebar for footing Rebars. - Give an on-scale schematic structural detail (CAD) * PLAN + ELEVATION * ISOMETRIC (if necessary)
DESIGN OF STRIP FOOTING Given: qa=140kPafc′=28MPafy=414MPaδc=24kN/m3δs=16kN/m3C−2=500×500 mmPs= Service Loads =DL+LLPu= Ultimate Loads =1.2DL+1.6LL embedment =2 m Required: Design a strip footing - Consider the effect of the embedment - Use 20 mm∅ rebar for footing Rebars. - Give an on-scale schematic structural detail (CAD) * PLAN + ELEVATION * ISOMETRIC (if necessary)
