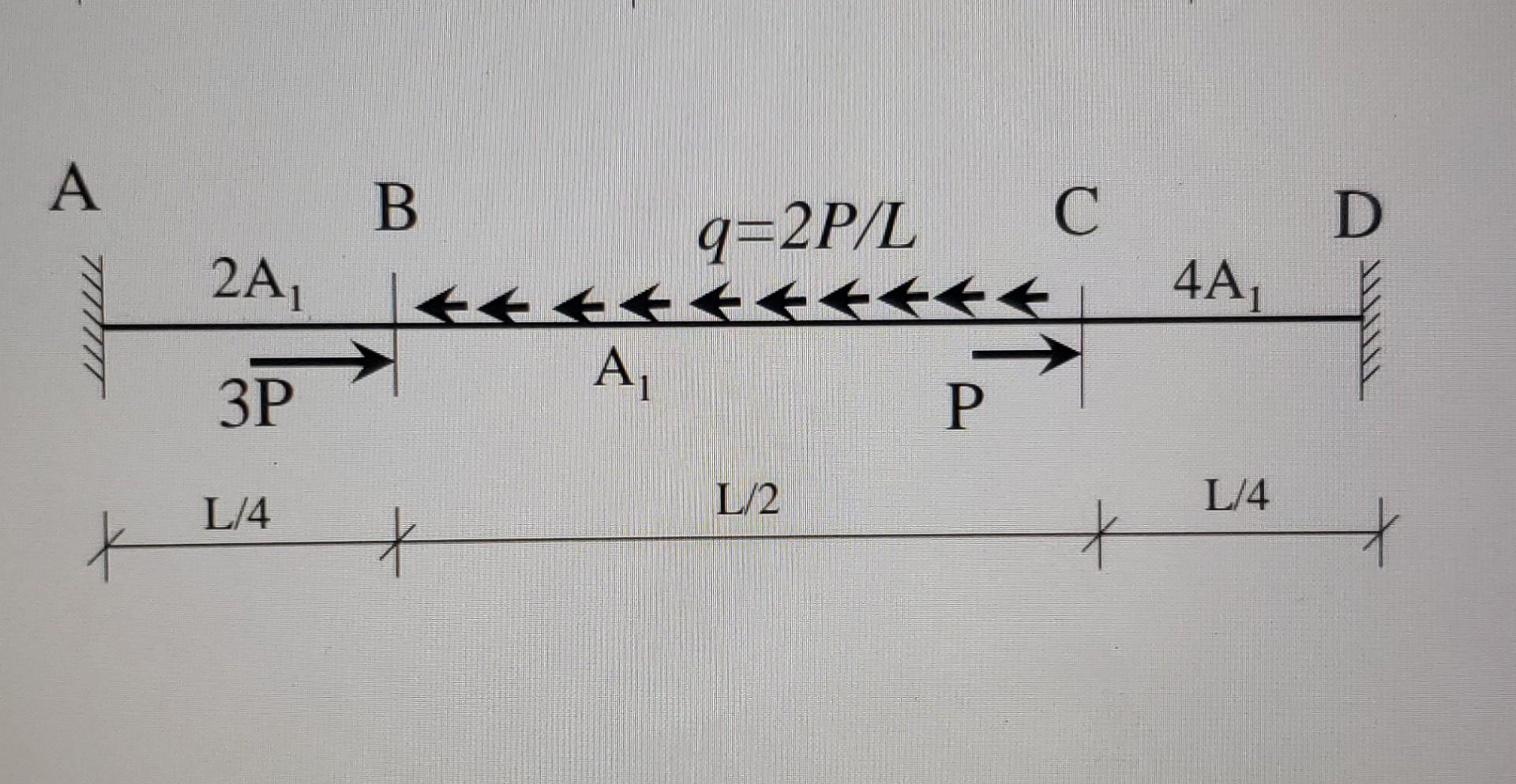

Determine the reaction A and D. Use the principle of superposition to find the reaction at D, and use statics for A. Draw the axial force, stress, strain and displacement diagrams as well. Thank you.
