A beam 200 mm×400 mm has cc of 40 mm, stirrups of 10 mm, and is reinforced by 2 16 mm diameter rebars for tension. The s

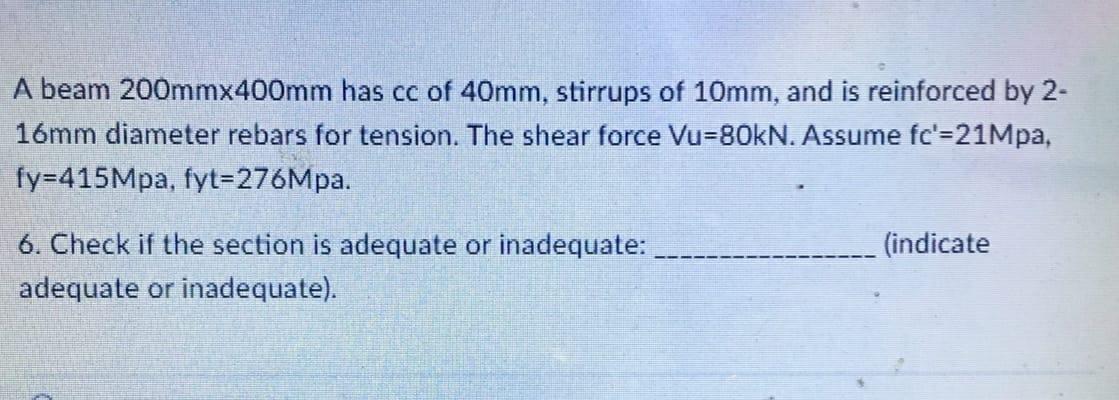

A beam 200 mm×400 mm has cc of 40 mm, stirrups of 10 mm, and is reinforced by 2 16 mm diameter rebars for tension. The shear force Vu=80kN. Assume f′=21Mpa, fy=415Mpa,fyt=276Mpa 6. Check if the section is adequate or inadequate: (indicate adequate or inadequate).
