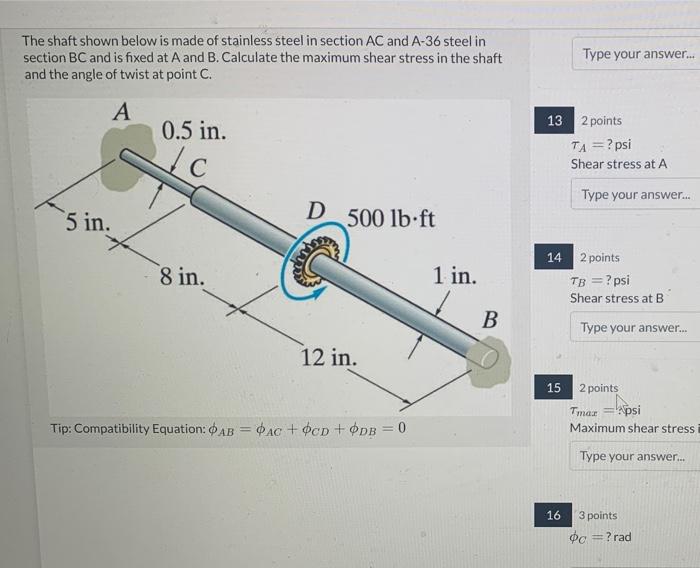

The shaft shown below is made of stainless steel in section AC and A−36 steel in section BC and is fixed at A and B. Calculate the maximum shear stress in the shaft and the angle of twist at point C. 13 2 points τA=? psi Shear stress at A 14 2 points τB=?psi Shear stress at B 15 2 points τmax=2psi Maximum shear stress i 3 points ϕC=?rad
