Question 8 (12 points) On the HNMR spectrum of the structure shown, the following signals are present: a (2.35ppm, singl

[answerhappygod]

Question 8 12 Points On The Hnmr Spectrum Of The Structure Shown The Following Signals Are Present A 2 35ppm Singl 1 (43.42 KiB) Viewed 48 times

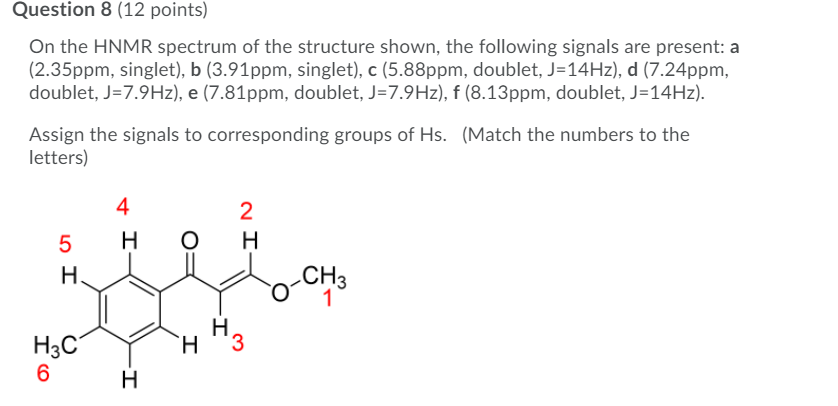

Question 8 (12 points) On the HNMR spectrum of the structure shown, the following signals are present: a (2.35ppm, singlet), b (3.91ppm, singlet), c (5.88ppm, doublet, J=14Hz), d (7.24ppm, doublet, J=7.9Hz), e (7.81ppm, doublet, J=7.9 Hz), f (8.13ppm, doublet, J=14Hz). Assign the signals to corresponding groups of Hs. (Match the numbers to the letters) 4 2 H I O 5 H LI CH3 H Η. H3 I H3C 6 -I H
