(12 points) Difficulty (3/5) Dimensions: Problem Statement: The curved boundaries of the shape shown are quarter circles

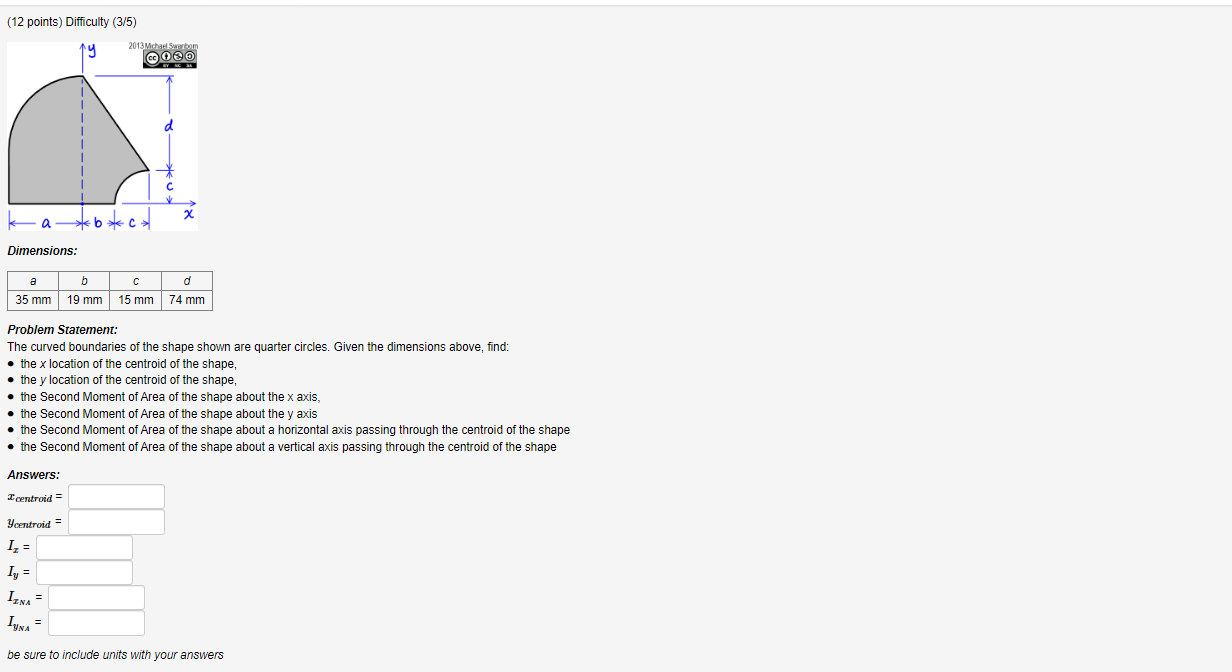

(12 points) Difficulty (3/5) Dimensions: Problem Statement: The curved boundaries of the shape shown are quarter circles. Given the dimensions above, find: - the x location of the centroid of the shape, - the y location of the centroid of the shape, - the Second Moment of Area of the shape about the x axis, - the Second Moment of Area of the shape about the y axis - the Second Moment of Area of the shape about a horizontal axis passing through the centroid of the shape - the Second Moment of Area of the shape about a vertical axis passing through the centroid of the shape Answers: xcentroid = ycentroid = Ix= Iy= IxNA= IyNA= be sure to include units with your answers
