A beam 200mmx400mm has cc of 40mm, stirrups of 10mm, and is reinforced by 2-16mm diameter
rebars for tension. The shear force Vu=80kN. Assume fc'=21Mpa, fy=415Mpa, fyt=276Mpa.
6. Check if the section is adequate or inadequate:
(indicate adequate or inadequate).v

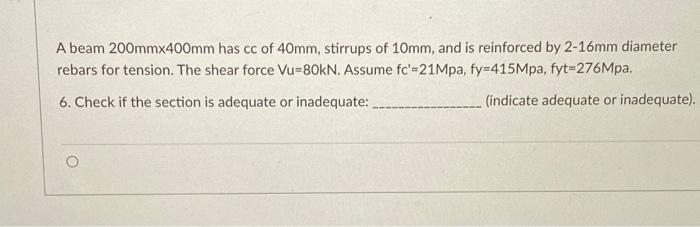

A Beam 200mmx400mm Has Cc Of 40mm Stirrups Of 10mm And Is Reinforced By 2 16mm Diameter Rebars For Tension The Shear 1 (20.96 KiB) Viewed 36 times
A beam 200mmx400 mm has cc of 40 mm, stirrups of 10 mm, and is reinforced by 2−16 mm diameter rebars for tension. The shear force Vu=80kN. Assume fc′=21Mpa, fy =415Mpa, fyt =276Mpa. 6. Check if the section is adequate or inadequate: (indicate adequate or inadequate)
