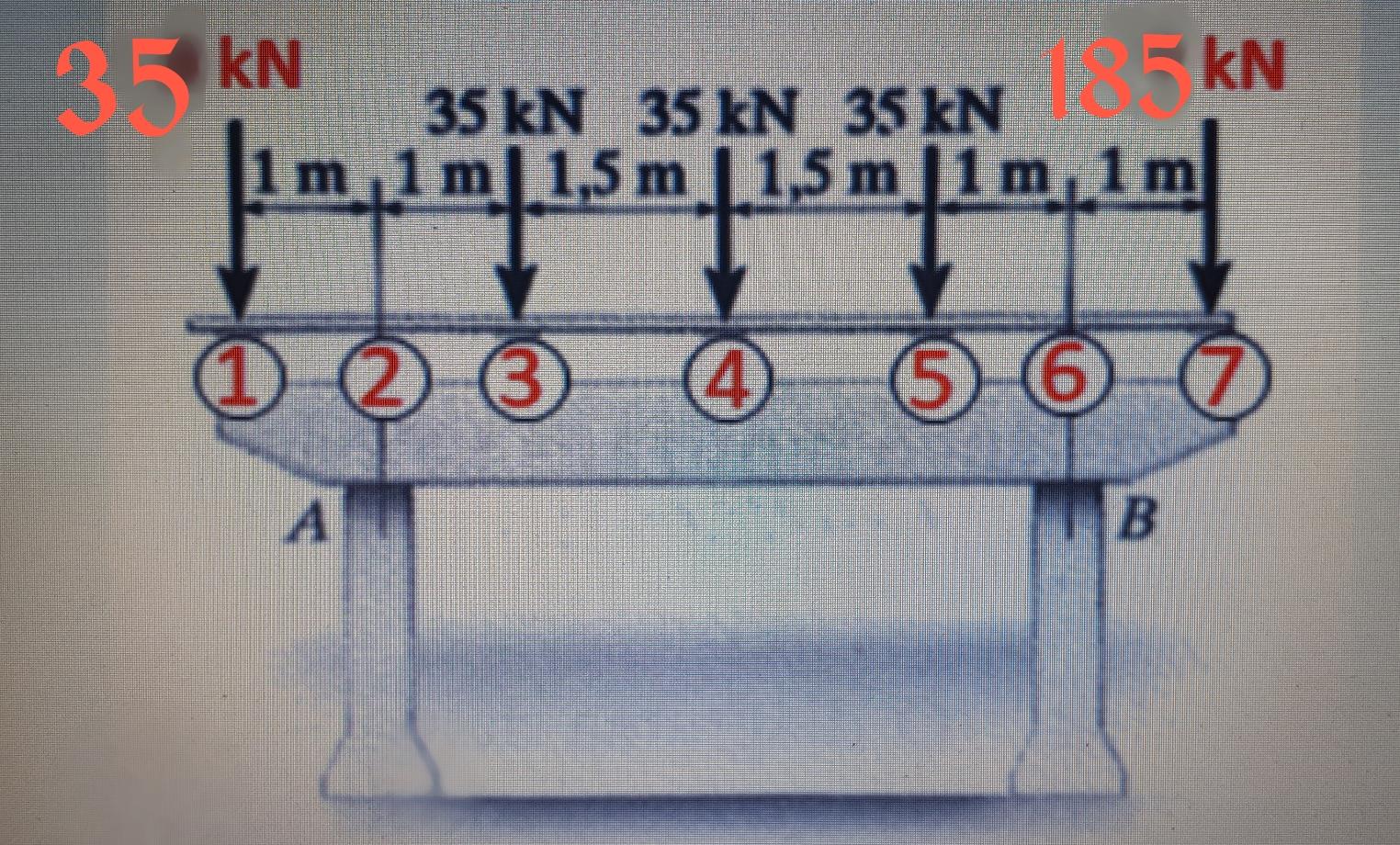

Calculate the reactions, the bending moment and the shearforceA reinforced concrete support is used to support the platformstringers of a bridge. Assume that columns A and B exert onlyvertical loads on the support.
a) Give the values of the reactions at A and B
b) Give the values of shear force and bending moment at eachof points 1 to 7.
Calculate The Reactions The Bending Moment And The Shear Force A Reinforced Concrete Support Is Used To Support The Pla 1 (399.61 KiB) Viewed 34 times
