Assume the gear shaft shown below is a hollow cylinder with an inside diameter of 30 mm and a thickness of 20 mm. Assumi

Post by answerhappygod »

Assume The Gear Shaft Shown Below Is A Hollow Cylinder With An Inside Diameter Of 30 Mm And A Thickness Of 20 Mm Assumi 1
Assume The Gear Shaft Shown Below Is A Hollow Cylinder With An Inside Diameter Of 30 Mm And A Thickness Of 20 Mm Assumi 1 (31.85 KiB) Viewed 34 times

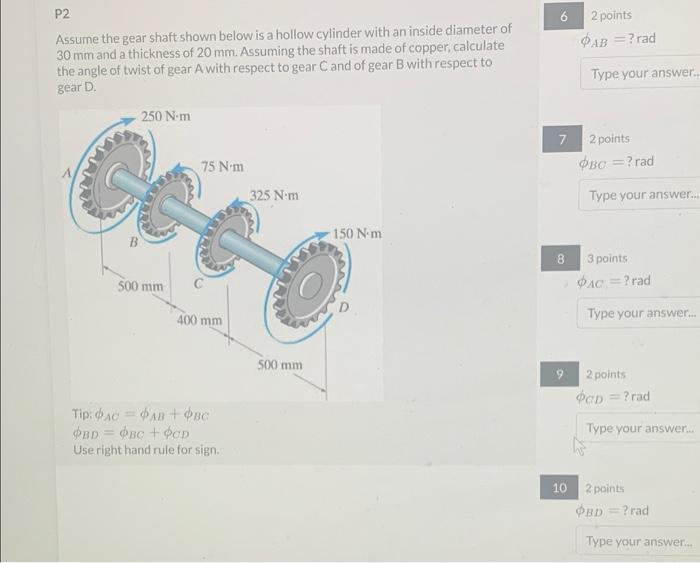

Assume the gear shaft shown below is a hollow cylinder with an inside diameter of 30 mm and a thickness of 20 mm. Assuming the shaft is made of copper, calculate ϕAB​=?rad the angle of twist of gear A with respect to gear C and of gear B with respect to gear D. 7 2 points ϕBC​=? rad 83 points ϕAC=?rad 9 2 points ϕCD​=?rad Tip: ϕAC​=ϕAB​+ϕBC​ ϕBD​=ϕBC​+ϕCD​ Use right hand rule for sign.
