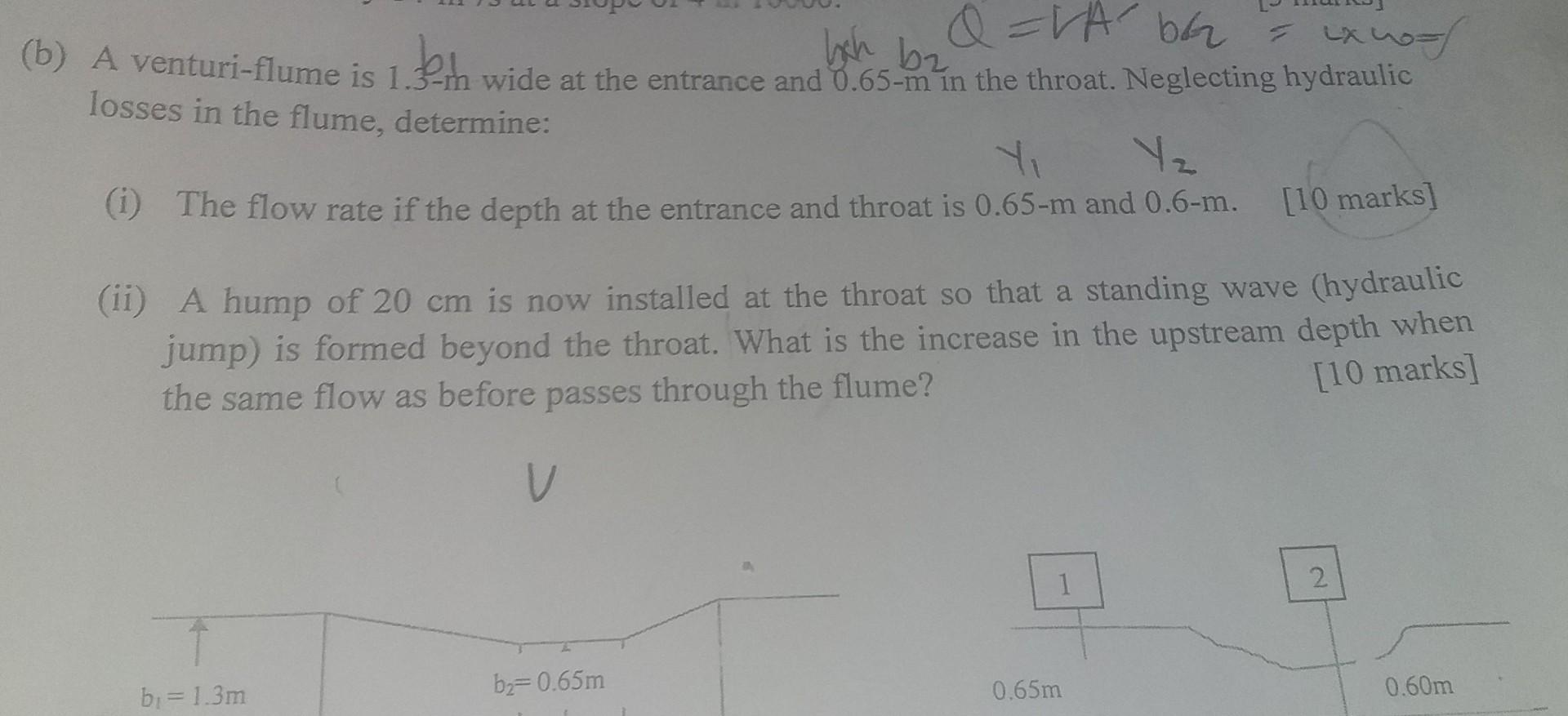

heh b2Q=V+b⋅2=4x2= b) A venturi-flume is 1.3−m wide at the entrance and 0.65−m in the throat. Neglecting hydraulic losses in the flume, determine: (i) The flow rate if the depth at the entrance and throat is 0.65−m and 0.6−m. [10 marks ] (ii) A hump of 20 cm is now installed at the throat so that a standing wave (hydraulic jump) is formed beyond the throat. What is the increase in the upstream depth when the same flow as before passes through the flume? [10 marks ]
