The beam shown has a constant modulus of rigidity El and a hinge at point C. Use the senses of integration proposed (see

Post by answerhappygod »

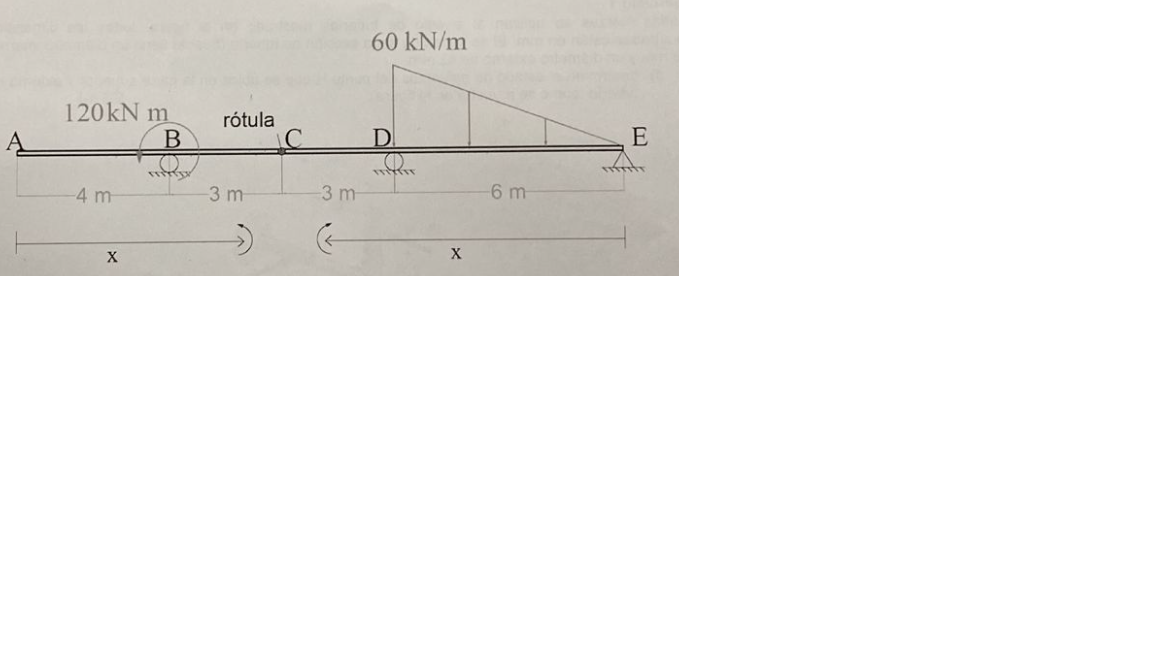

The beam shown has a constant modulus of rigidity El and a hingeat point C. Use the sensesof integration proposed (see direction of x) to construct singularequations of moments anddetermine:a) The equations to calculate the deflection and rotation of thebeam with their respective constants ofintegrationb) The deflection of point Cc) The rotation of point B
The Beam Shown Has A Constant Modulus Of Rigidity El And A Hinge At Point C Use The Senses Of Integration Proposed See 1
The Beam Shown Has A Constant Modulus Of Rigidity El And A Hinge At Point C Use The Senses Of Integration Proposed See 1 (200.49 KiB) Viewed 41 times
