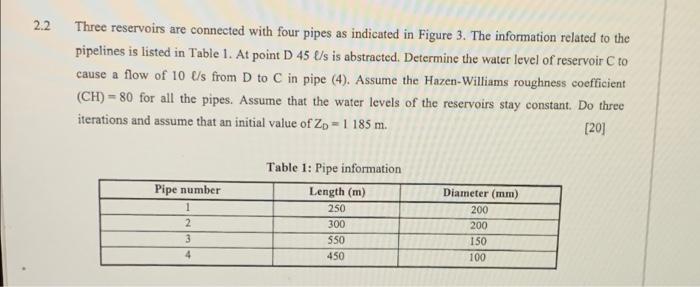

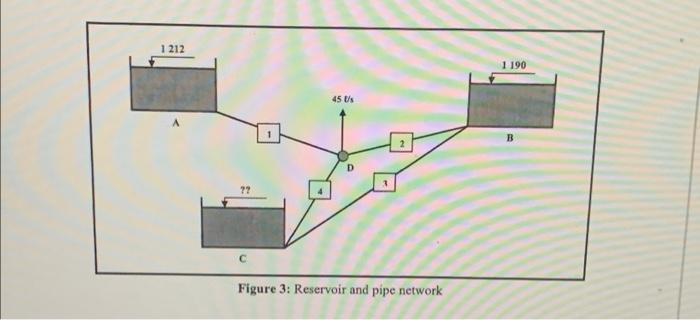

2 Three reservoirs are connected with four pipes as indicated in Figure 3. The information related to the pipelines is listed in Table 1. At point D 45ℓ/s is abstracted. Determine the water level of reservoir C to cause a flow of 10U/s from D to C in pipe (4). Assume the Hazen-Williams roughness coefficient (CH)=80 for all the pipes. Assume that the water levels of the reservoirs stay constant. Do three iterations and assume that an initial value of ZD=1185 m. [20] Table 1: Pipe information
n'suse d. reser vutr ank prpe network
