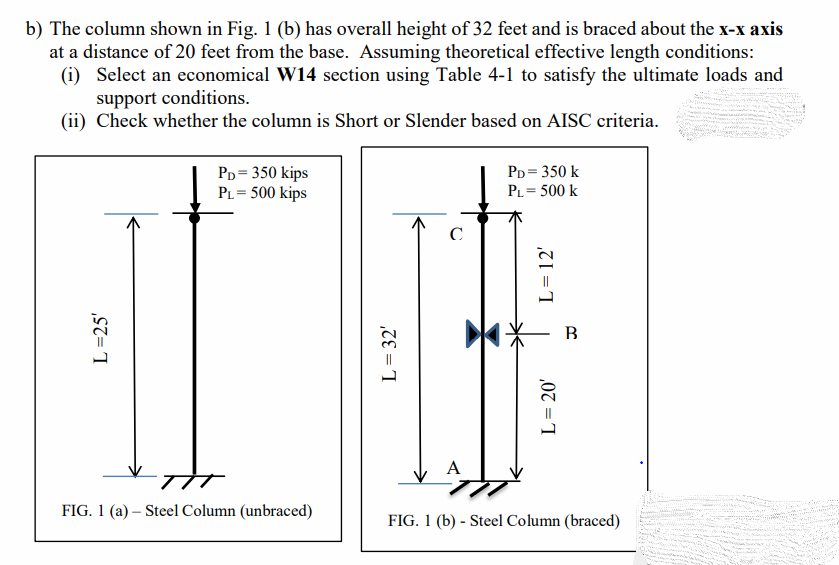

B The Column Shown In Fig 1 B Has Overall Height Of 32 Feet And Is Braced About The X X Axis At A Distance Of 20 Fee 1 (81.31 KiB) Viewed 34 times
Please help me solve as soon as possible ,The column shown inFig. 1 (b) has overall height of 32 feet and is braced about thex-x axis at a distance of 20 feet from the base. Assumingtheoretical effective length conditions: (i) Select an economicalW14 section using Table 4-1 to satisfy the ultimate loads andsupport conditions. (ii) Check whether the column is Short orSlender based on AISC criteria
b) The column shown in Fig. 1 (b) has overall height of 32 feet and is braced about the x−x axis at a distance of 20 feet from the base. Assuming theoretical effective length conditions: (i) Select an economical W14 section using Table 4-1 to satisfy the ultimate loads and support conditions. (ii) Check whether the column is Short or Slender based on AISC criteria.
