Which sketch best represents the moment diagram for the given beam and shear diagram. Use the relationships between the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Which sketch best represents the moment diagram for the given beam and shear diagram. Use the relationships between the

Post by answerhappygod »

Which Sketch Best Represents The Moment Diagram For The Given Beam And Shear Diagram Use The Relationships Between The 1
Which Sketch Best Represents The Moment Diagram For The Given Beam And Shear Diagram Use The Relationships Between The 1 (43.94 KiB) Viewed 37 times

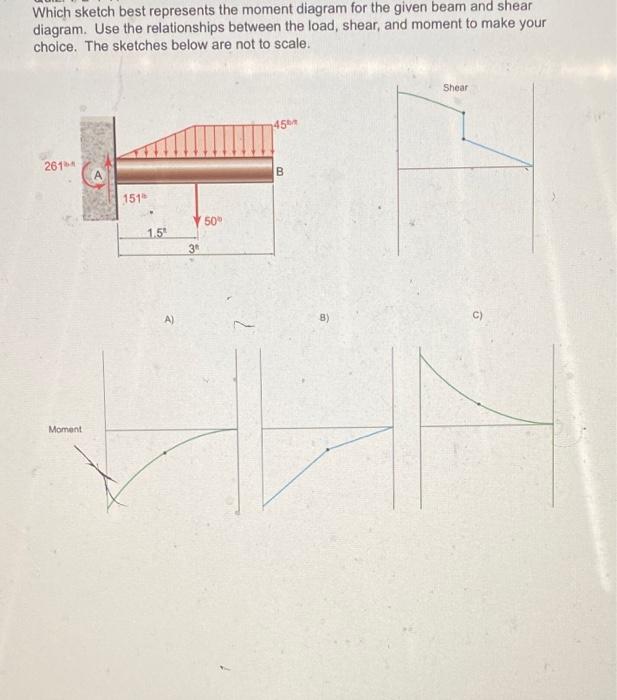

Which sketch best represents the moment diagram for the given beam and shear diagram. Use the relationships between the load, shear, and moment to make your choice. The sketches below are not to scale. A) 8) C)
