A tension member splice is made with 1/4-inch E70 fillet welds as shown in Figure P7.11-4. Each side of the splice is we

Post by answerhappygod »

A Tension Member Splice Is Made With 1 4 Inch E70 Fillet Welds As Shown In Figure P7 11 4 Each Side Of The Splice Is We 1
A Tension Member Splice Is Made With 1 4 Inch E70 Fillet Welds As Shown In Figure P7 11 4 Each Side Of The Splice Is We 1 (55.74 KiB) Viewed 38 times

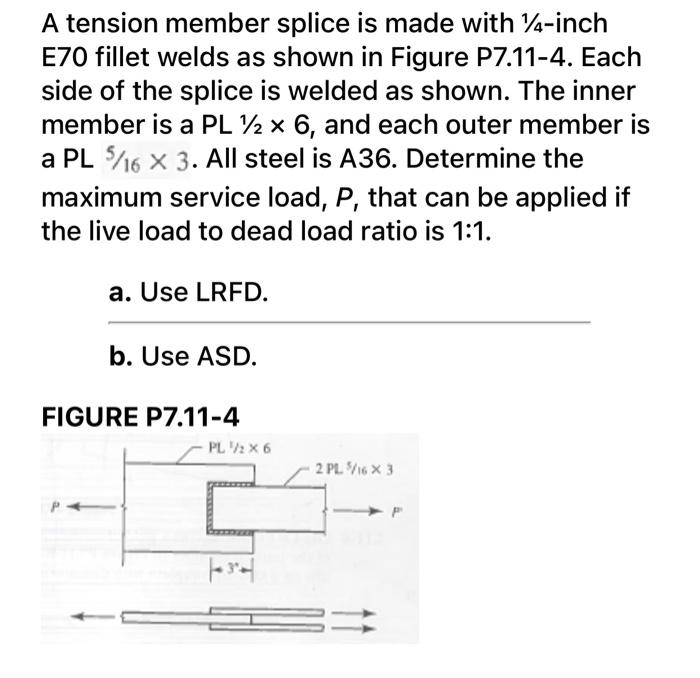

A tension member splice is made with 1/4-inch E70 fillet welds as shown in Figure P7.11-4. Each side of the splice is welded as shown. The inner member is a PL1/2×6, and each outer member is a PL 5/16×3. All steel is A36. Determine the maximum service load, P, that can be applied if the live load to dead load ratio is 1:1. a. Use LRFD. b. Use ASD. FIGURE P7.11-4
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
