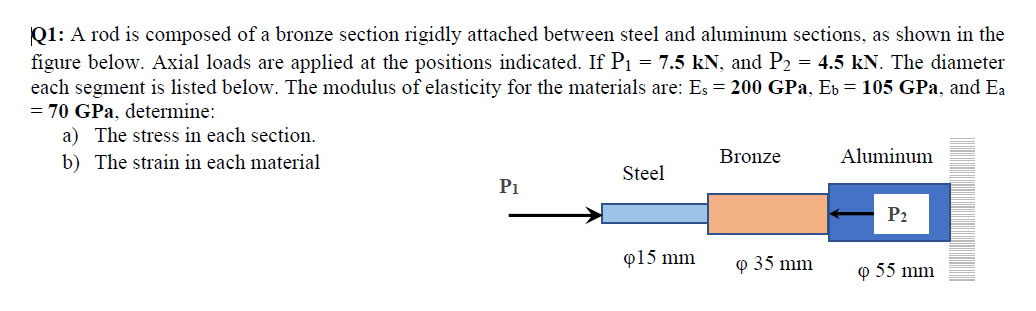

Q1: A rod is composed of a bronze section rigidly attached between steel and aluminum sections, as shown in the figure below. Axial loads are applied at the positions indicated. If P1​=7.5kN, and P2​=4.5kN. The diameter each segment is listed below. The modulus of elasticity for the materials are: Es​=200GPa,Eb​=105GPa, and Ea​ =70GPa, determine: a) The stress in each section. b) The strain in each material
