Point Load At Centre Of Beam 0 245kn Distributed Load W 0 0735kn Both Supports Are Fixed X 0 And X L Ind Reaction For 1 (18.07 KiB) Viewed 39 times

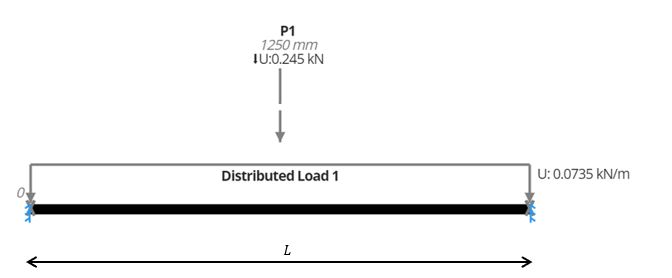

Required task and loading conditions
Point Load At Centre Of Beam 0 245kn Distributed Load W 0 0735kn Both Supports Are Fixed X 0 And X L Ind Reaction For 2 (11.86 KiB) Viewed 39 times
This is for the purpose of verification: When L=2.5 m thereaction forces are shown as
Point Load At Centre Of Beam 0 245kn Distributed Load W 0 0735kn Both Supports Are Fixed X 0 And X L Ind Reaction For 3 (20.03 KiB) Viewed 39 times
Point load at centre of beam =0.245kN Distributed load w=0.0735kN Both supports are fixed (x=0 and x=L) ind Reaction forces and moments at both supports in terms of lenght L

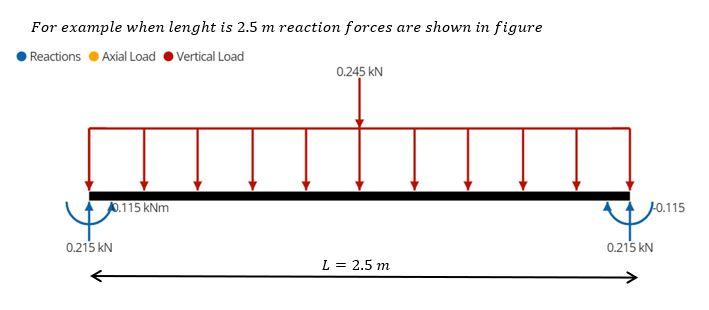

For example when lenght is 2.5 m reaction forces are shown in figure
