The figure (not drawn to scale) shows a curved I-beam of given section and inner radius subjected to a bending moment. G
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The figure (not drawn to scale) shows a curved I-beam of given section and inner radius subjected to a bending moment. G

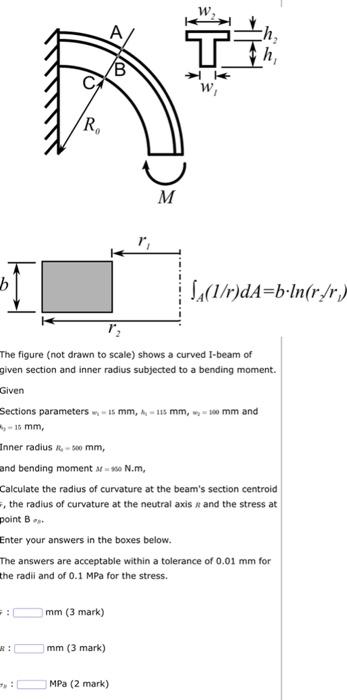

The figure (not drawn to scale) shows a curved I-beam of given section and inner radius subjected to a bending moment. Given Sections parameters w1=15 mm, s1=115 mm,w2=100 mm and x0=15 mm. Inner radius R1−500 mm, and bending moment at= wo N.m, Calculate the radius of curvature at the beam's section centroid F, the radius of curvature at the neutral axis n and the stress at point B am. Enter your answers in the boxes below. The answers are acceptable within a tolerance of 0.01 mm for the radi and of 0.1MPa for the stress. mm (3 mark) mm (3 mark) MPa (2 mark)
