Problem 2 (35 poinss) The section shown in the figure below is required to resist an ultimate design moment of 290kN.m.

Post by answerhappygod »

Problem 2 35 Poinss The Section Shown In The Figure Below Is Required To Resist An Ultimate Design Moment Of 290kn M 1
Problem 2 35 Poinss The Section Shown In The Figure Below Is Required To Resist An Ultimate Design Moment Of 290kn M 1 (21.41 KiB) Viewed 36 times

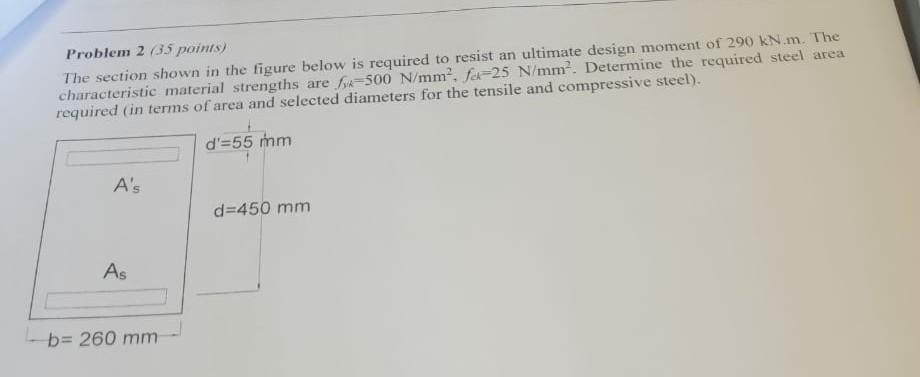

Problem 2 (35 poinss) The section shown in the figure below is required to resist an ultimate design moment of 290kN.m. The characteristic material strengths are f sk =500 N/mm2,fch=25 N/mm2. Determine the required steel area reauired (in terms of area and selected diameters for the tensile and compressive steel).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
