0. Blocks A and B have masses 400 kg and 200 kg, respectively and rest on 30∘ inclined plane. Blocks are attached to a p

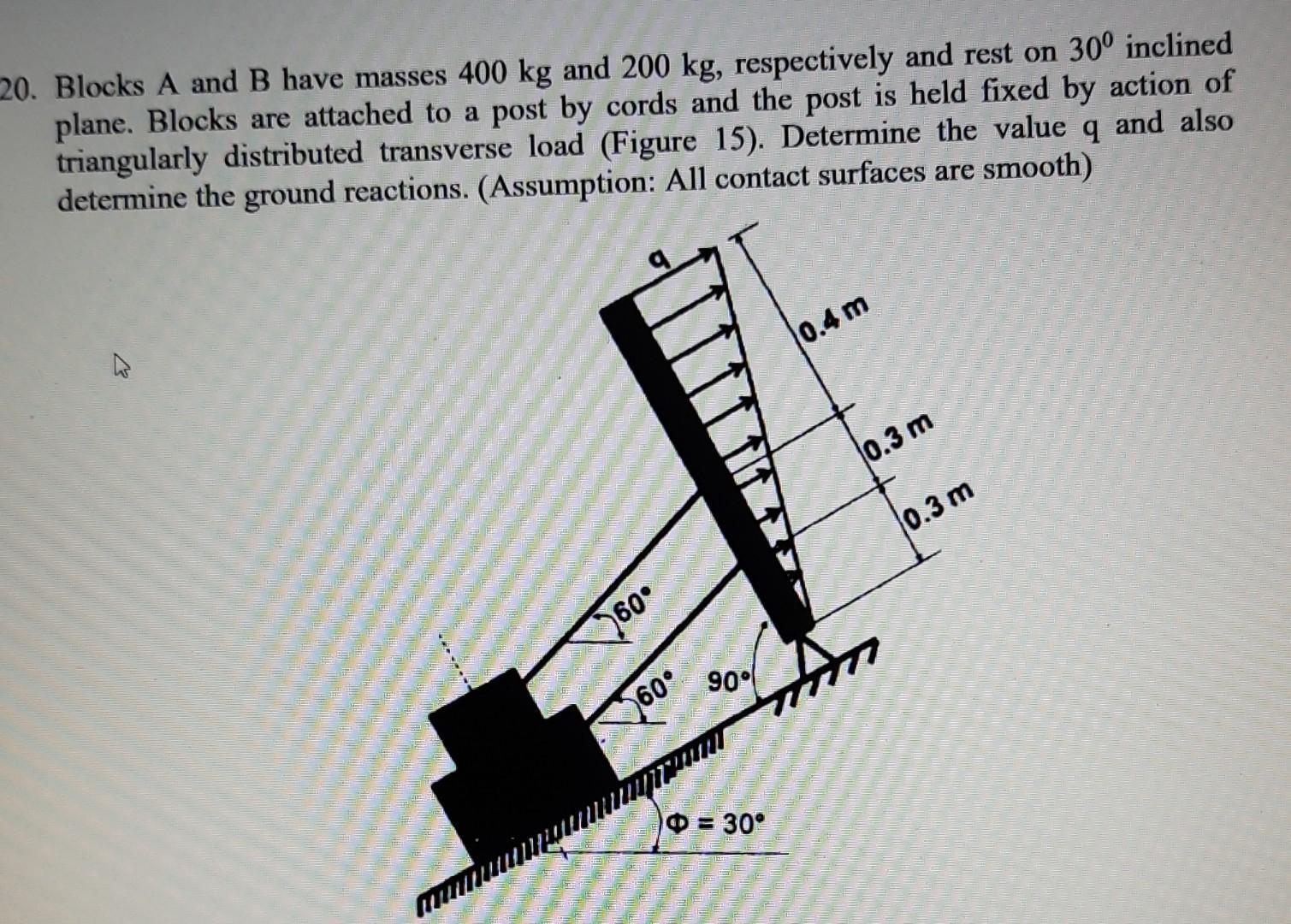

0. Blocks A and B have masses 400 kg and 200 kg, respectively and rest on 30∘ inclined plane. Blocks are attached to a post by cords and the post is held fixed by action of triangularly distributed transverse load (Figure 15). Determine the value q and also determine the ground reactions. (Assumption: All contact surfaces are smooth)
