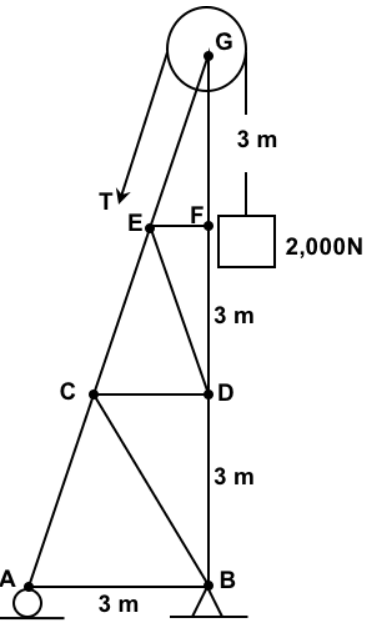

The steel cable is hosting a 2 kN weight through a frictionlesspulley shown.
The Steel Cable Is Hosting A 2 Kn Weight Through A Frictionless Pulley Shown Assume That The Weight Is Not Accelerating 1 (36.77 KiB) Viewed 37 times
Assume that the weight is not accelerating and the cable isparallel to the sides of the truss frame.
a.) Determine the internal force in N atmember AC.
b.) Determine the internal force in N atmember DF.
