phasing in which all left-turn movements and in the Figure 4 shows the signal flow/saturation flow informationgiven: inf

[answerhappygod]

Phasing In Which All Left Turn Movements And In The Figure 4 Shows The Signal Flow Saturation Flow Informationgiven Inf 1 (46.54 KiB) Viewed 38 times

Phasing In Which All Left Turn Movements And In The Figure 4 Shows The Signal Flow Saturation Flow Informationgiven Inf 2 (41.23 KiB) Viewed 38 times

Phasing In Which All Left Turn Movements And In The Figure 4 Shows The Signal Flow Saturation Flow Informationgiven Inf 3 (27.94 KiB) Viewed 38 times

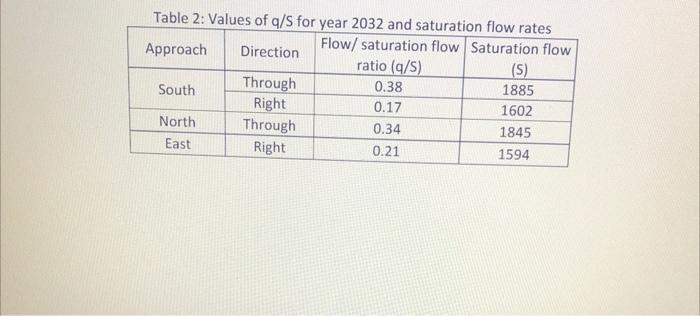

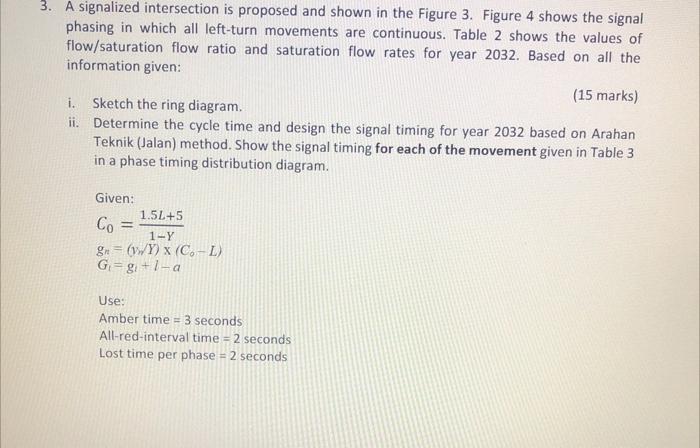

phasing in which all left-turn movements and in the Figure 4 shows the signal flow/saturation flow informationgiven: information given: i. Sketch the ring diagram. (15 marks) ii. Determine the cycle time and design the signal timing for year 2032 based on Arahan Teknik (Jalan) method. Show the signal timing for each of the movement given in Table 3 in a phase timing distribution diagram. Given: C0​=1−Y1.5L+5​gn​=(yn​/Y)×(C0​−L)Gl​=gi​+l−a​ Use: Amber time =3 seconds All-red-interval time =2 seconds Lost time per phase =2 seconds

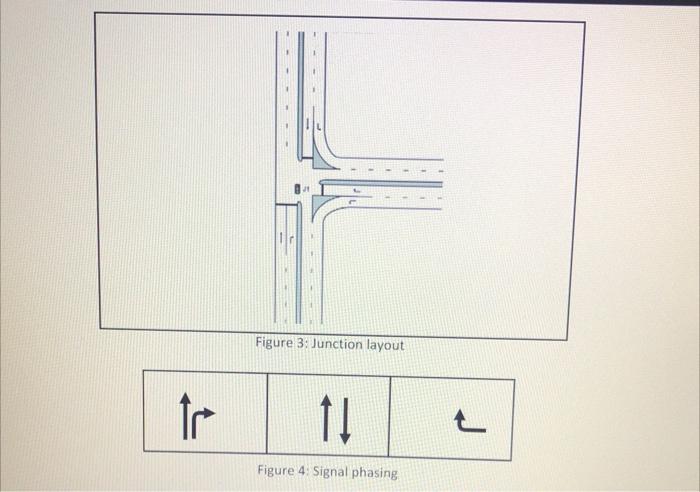

Figure 4: Signal phasing
Table 2: Values of a/S for vear 2037 and eatiuration fla... ..nt.
