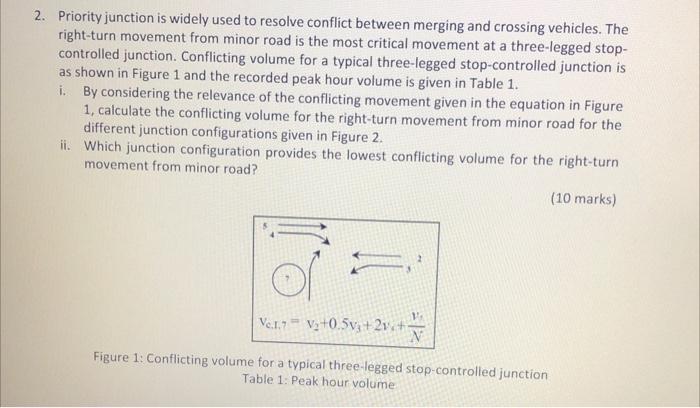

2. Priority junction is widely used to resolve conflict between merging and crossing vehicles. The right-turn movement from minor road is the most critical movement at a three-legged stopcontrolled junction. Conflicting volume for a typical three-legged stop-controlled junction is as shown in Figure 1 and the recorded peak hour volume is given in Table 1. i. By considering the relevance of the conflicting movement given in the equation in Figure 1 , calculate the conflicting volume for the right-turn movement from minor road for the different junction configurations given in Figure 2. ii. Which junction configuration provides the lowest conflicting volume for the right-turn movement from minor road? (10 marks) Figure 1: Conflicting volume for a typical three-legged stop-controlled junction Table 1: Peak hour volume

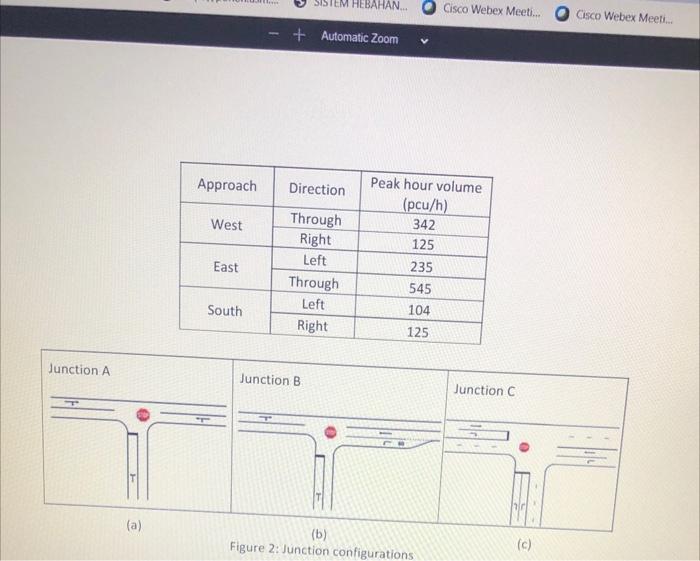

- + Automatic Zoom Cisco Webex Meeti. \begin{tabular}{|c|c|c|} \hline Approach & Direction & Peak hour volume (pcu/h) \\ \hline \multirow{2}{*}{ West } & Through & 342 \\ \cline { 2 - 3 } & Right & 125 \\ \hline \multirow{2}{*}{ East } & Left & 235 \\ \cline { 2 - 3 } & Through & 545 \\ \hline \multirow{2}{*}{ South } & Left & 104 \\ \cline { 2 - 3 } & Right & 125 \\ \hline \end{tabular}
