Two vertical forces are applied to a simply supported beam, having the cross section shown. Assume LAB=LCD=1.2 m,LBC=3

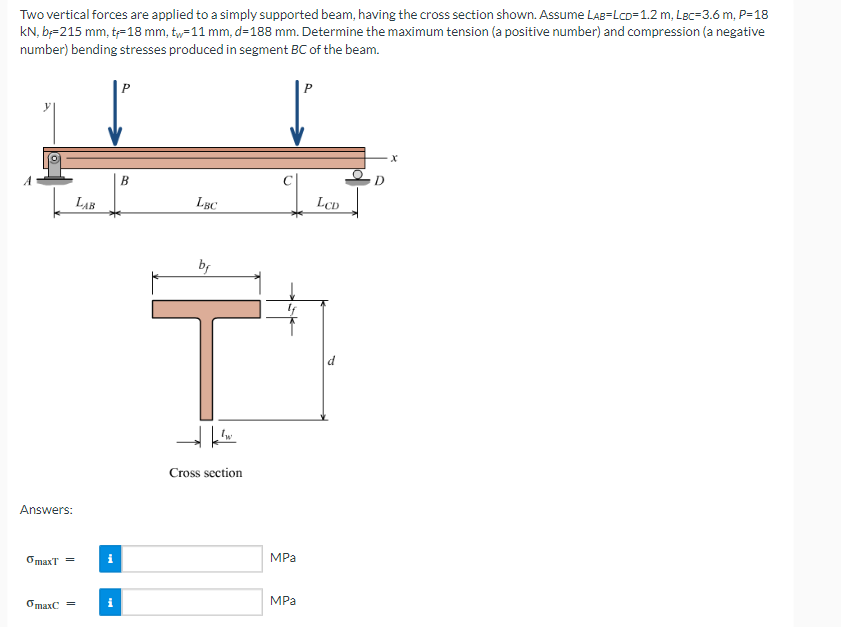

Two vertical forces are applied to a simply supported beam, having the cross section shown. Assume LAB=LCD=1.2 m,LBC=3.6 m,P=18 kN,bf=215 mm,tf=18 mm,tw=11 mm,d=188 mm. Determine the maximum tension (a positive number) and compression (a negative number) bending stresses produced in segment BC of the beam. Answers:
