A bar ABC which partially carries a uniform load of W = 15 kN/m is being supported by two cables BE and CF. The segments of the bar have lengths: L1 = 2 m, L2 = 1 m, and L3 = 2 m. Take note the vertical cable has a length of H = 1 m.Properties of cable BE:A = 20 sq. mm.E = 100 GPaProperties of cable CF:A = 50 sq. mm.E = 90 GPaDetermine the following:A. Tension of cable BE = NB. Tension of CE = NC. Stress of cable BE = MPaD. Stress of cable CF = MPaE. Change in length of BE = mmF. Change in length of CF = mmG. Vertical deflection of point B = mmH. Vertical deflection of point C = mm Express your answers in three decimal places. thank you )

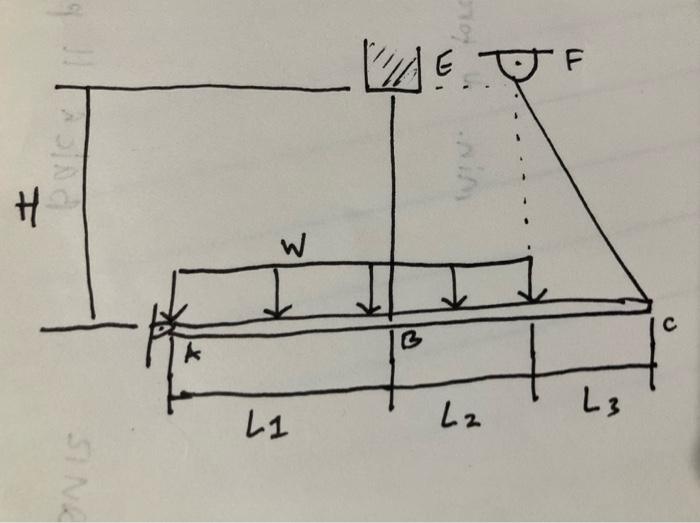

A bar ABC which partially carries a uniform load of W = 15 kN/m is being supported by two cables BE and CF. The segments of the bar have lengths: L1 = 2 m, L2 = 1 m, and L3 = 2 m. Take note the vertical cable has a length of H = 1 m.
Properties of cable BE:
A = 20 sq. mm.
E = 100 GPa
Properties of cable CF:
A = 50 sq. mm.
E = 90 GPa
Determine the following:
A. Tension of cable BE =
N
B. Tension of CE =
N
C. Stress of cable BE =
MPa
D. Stress of cable CF =
MPa
E. Change in length of BE =
mm
F. Change in length of CF =
mm
G. Vertical deflection of point B =
mm
H. Vertical deflection of point C =
mm
Express your answers in three decimal places. thank you )
