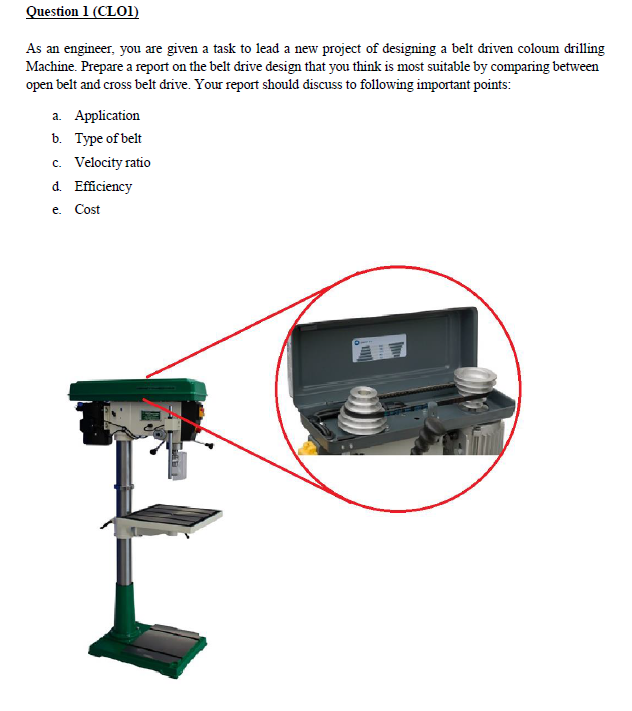

As an engineer, you are given a task to lead a new project of designing a belt driven coloum drilling Machine. Prepare a report on the belt drive design that you think is most suitable by comparing between open belt and cross belt drive. Your report should discuss to following important points: a. Application b. Type of belt c. Velocity ratio d. Efficiency e. Cost

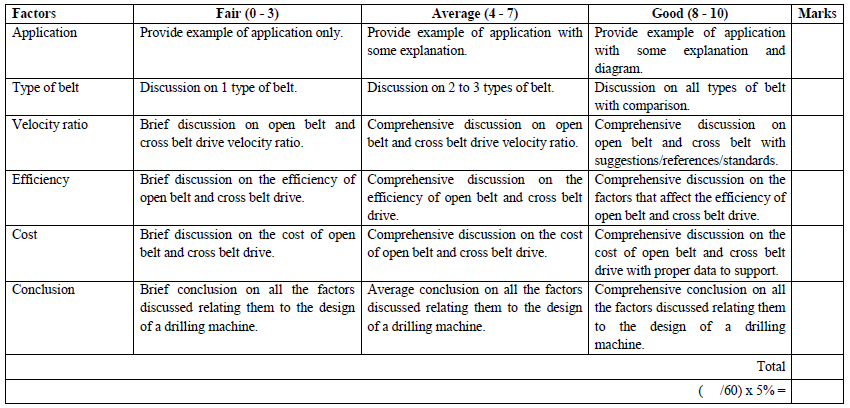

\begin{tabular}{|l|l|l|l|} \hline Factors & \multicolumn{1}{|c|}{ Fair (0−3)} & \multicolumn{1}{|c|}{ Average (4 - 7) } & \multicolumn{1}{|c|}{ Good (8) (10)} \\ \hline Application & Provide example of application only. & Provide example of application with some explanation. & Provide example of application with some explanation and diagram. \\ \hline Type of belt & Discussion on 1 type of belt. & Discussion on 2 to 3 types of belt. & Discussion on all types of belt with comparison. \\ \hline Velocity ratio & Brief discussion on open belt and cross belt drive velocity ratio. & Comprehensive discussion on open belt and cross belt drive velocity ratio. & Comprehensive discussion on open belt and cross belt with suggestions/references/standards. \\ \hline Efficiency & Brief discussion on the efficiency of open belt and cross belt drive. & Comprehensive discussion on the efficiency of open belt and cross belt drive. & Comprehensive discussion on the factors that affect the efficiency of open belt and cross belt drive. \\ \hline Cost & Brief discussion on the cost of open belt and cross belt drive. & Comprehensive discussion on the cost of open belt and cross belt drive. & Comprehensive discussion on the cost of open belt and cross belt drive with proper data to support. \\ \hline Conclusion & Brief conclusion on all the factors discussed relating them to the design of a drilling machine. & Average conclusion on all the factors discussed relating them to the design of a drilling machine. & Comprehensive conclusion on all the factors discussed relating them to the design of a drilling machine. \\ \hline \end{tabular}
