Cam ascembly The cam assembly shown on pages 265 and 266 consists of the following details. A cast iron body, item 1; a

Post by **answerhappygod** » Thu Jul 14, 2022 2:52 pm

: Cam Ascembly The Cam Assembly Shown On Pages 265 And 266 Consists Of The Following Details A Cast Iron Body Item 1 A 1 (139.81 KiB) Viewed 32 times

: Cam Ascembly The Cam Assembly Shown On Pages 265 And 266 Consists Of The Following Details A Cast Iron Body Item 1 A 2 (160.44 KiB) Viewed 32 times

: Cam Ascembly The Cam Assembly Shown On Pages 265 And 266 Consists Of The Following Details A Cast Iron Body Item 1 A 3 (145.7 KiB) Viewed 32 times

: Cam Ascembly The Cam Assembly Shown On Pages 265 And 266 Consists Of The Following Details A Cast Iron Body Item 1 A 4 (187.71 KiB) Viewed 32 times

pls @answers. This is the second time am posting this machine drawing question. The first time, the expert promise to send the solution to my email of which they did not send it, and I got my question slots wasted. pls help and do this questions. Thanks. [email protected]

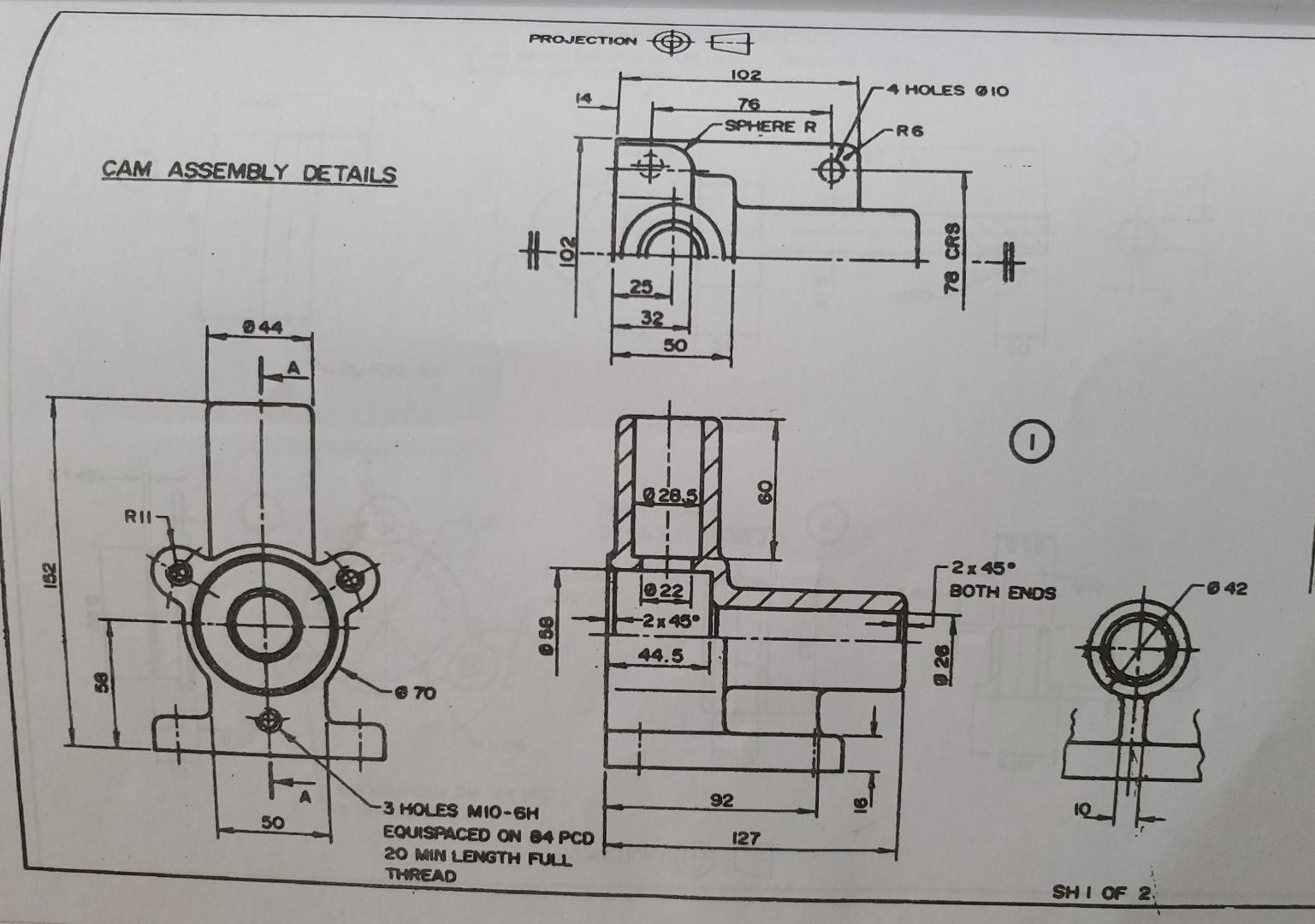

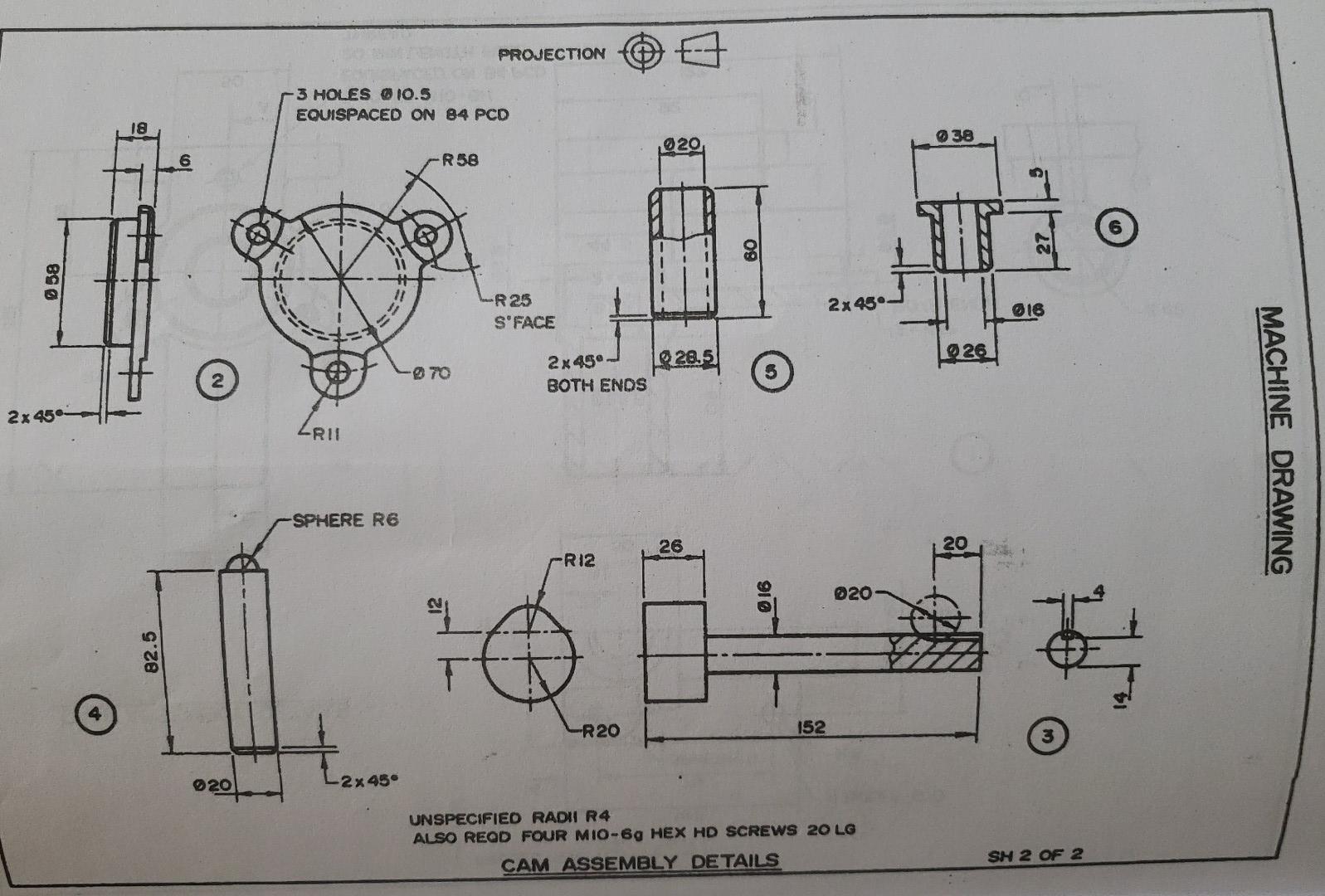

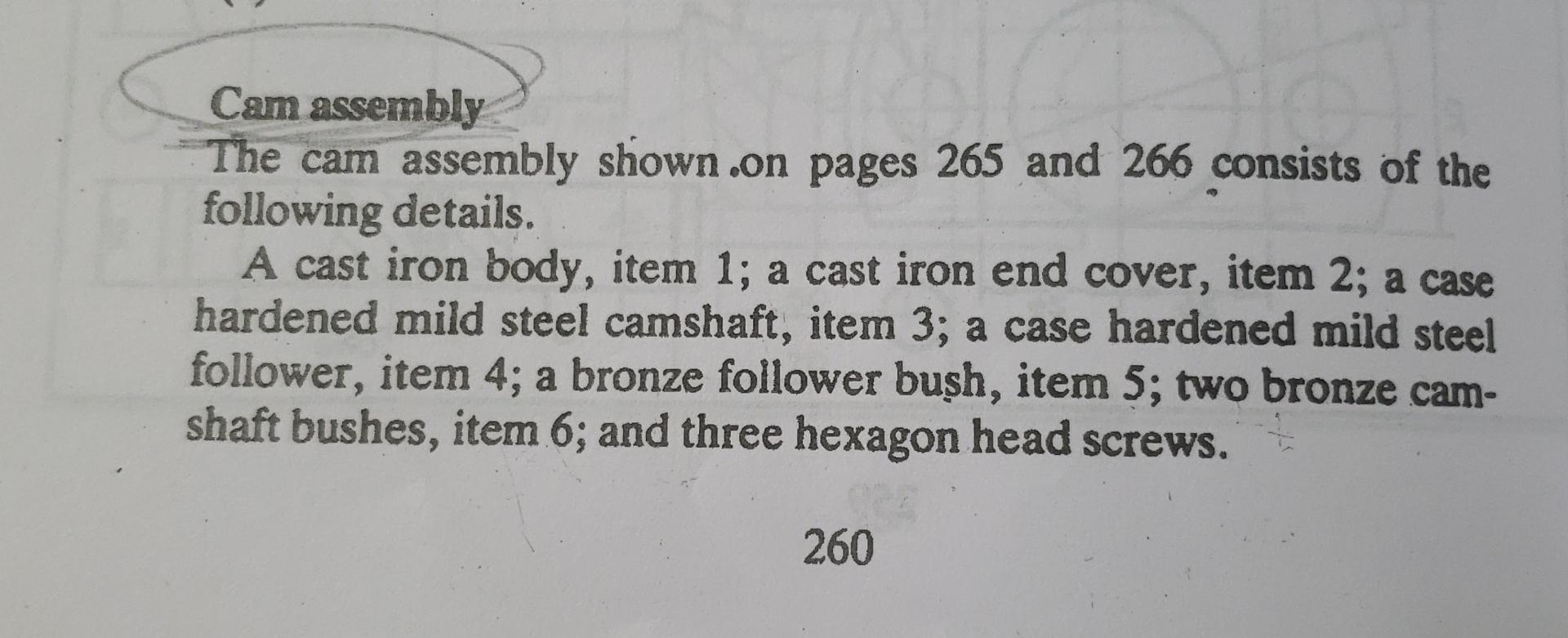

Cam ascembly The cam assembly shown on pages 265 and 266 consists of the following details. A cast iron body, item 1; a cast iron end cover, item 2; a case hardened mild steel camshaft, item 3; a case hardened mild steel follower, item 4; a bronze follower bush, item 5; two bronze camshaft bushes, item 6 ; and three hexagon head screws.

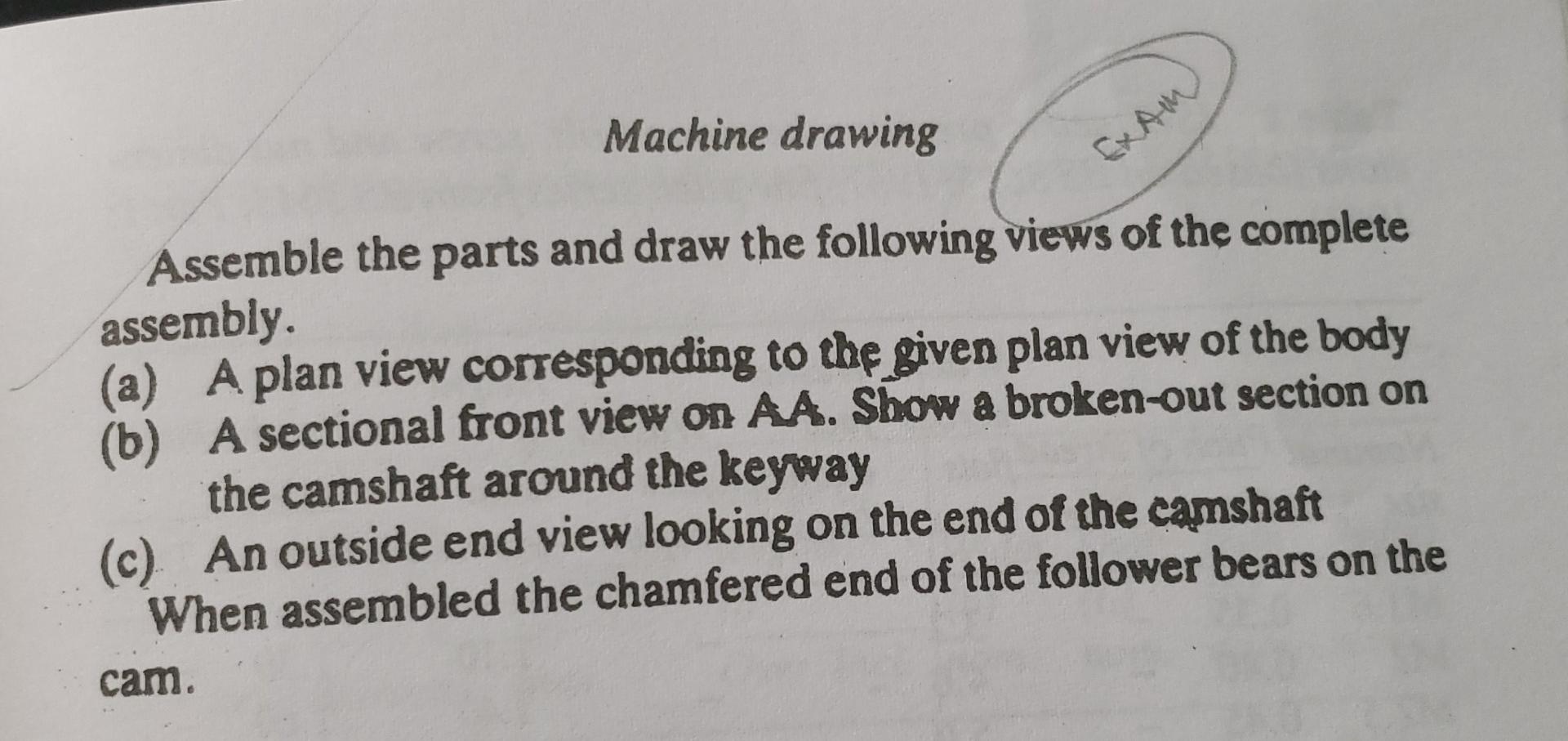

Assemble the parts and draw the following views of the complete assembly. (a) A plan view corresponding to the given plan view of the body (b) A sectional front view on A. Show a broken-out section on the camshaft around the kesway (c) An outside end view looking on the end of the camshaft When assembled the chamfered end of the follower bears on the cam.

PROUECTION (4) −7 (3) UNSPECIFIEO RADII R4 ALSO REOD FOUR MIO-6g HEX HD SCREWS 20 LO CAM ASSEMBLY DETAILS SH 2 of 2
