At a certain point during operation, the crankshaft of an automobile engine can be modeled as shown here. In this figure

Post by answerhappygod »

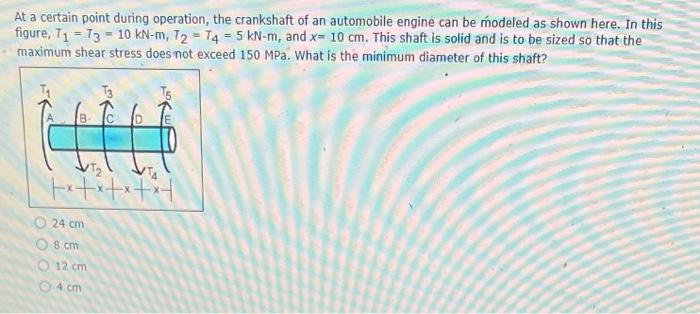

At A Certain Point During Operation The Crankshaft Of An Automobile Engine Can Be Modeled As Shown Here In This Figure 1
At A Certain Point During Operation The Crankshaft Of An Automobile Engine Can Be Modeled As Shown Here In This Figure 1 (37.54 KiB) Viewed 43 times
At a certain point during operation, the crankshaft of an automobile engine can be modeled as shown here. In this figure, T1​=T3​=10kN−m,T2​=T4​=5kN−m, and x=10 cm. This shaft is solid and is to be sized so that the maximum shear stress does not exceed 150MPa. What is the minimum diameter of this shaft? 24 cm 8 cm 12 cm 4 cm
