The solid steel shaft DF has a diameter of 25 mm and is Part A supported by smooth bearings at D and E. It is coupled to

Post by answerhappygod »

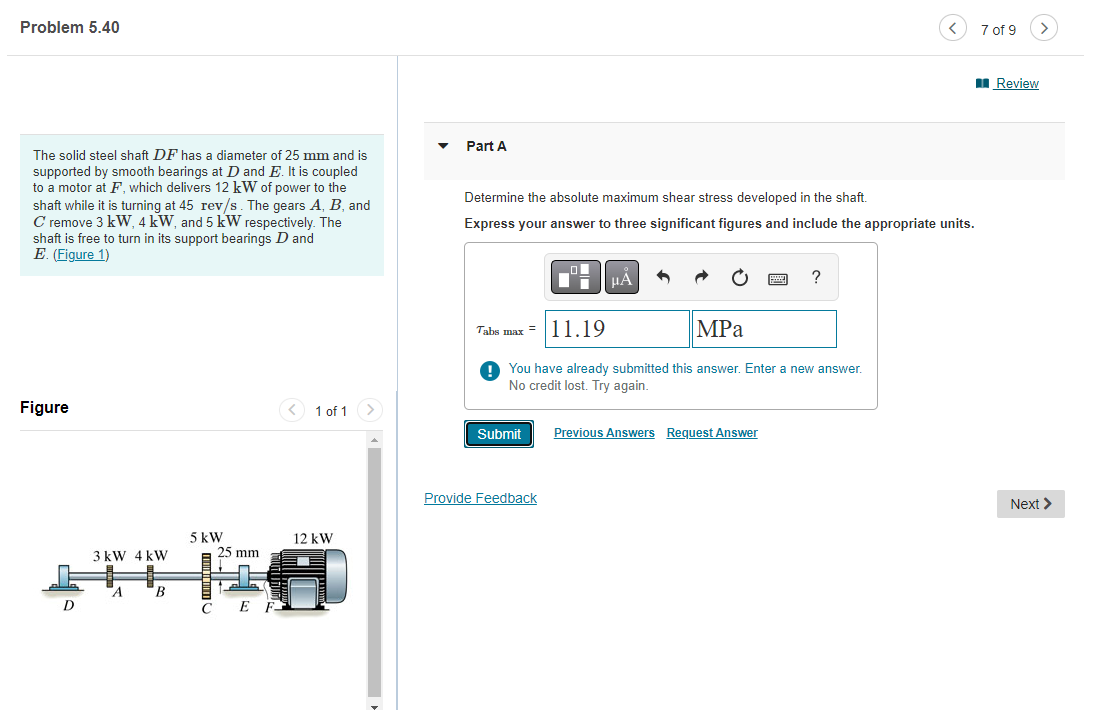

The Solid Steel Shaft Df Has A Diameter Of 25 Mm And Is Part A Supported By Smooth Bearings At D And E It Is Coupled To 1
The Solid Steel Shaft Df Has A Diameter Of 25 Mm And Is Part A Supported By Smooth Bearings At D And E It Is Coupled To 1 (72.36 KiB) Viewed 33 times
The solid steel shaft DF has a diameter of 25 mm and is Part A supported by smooth bearings at D and E. It is coupled to a motor at F, which delivers 12 kW of power to the Determine the absolute maximum shear stress developed in the shaft. shaft while it is turning at 45rev/s. The gears A,B, and Express your answer to three significant figures and include the appropriate units. C remove 3 kW,4 kW, and 5 kW respectively. The shaft is free to turn in its support bearings D and E. (Figure 1)
