COMPREHENSHVE PROBLEM BASED LEARNING An Aircraft B737-800 T-Stiffener beam located in the forward cargo hole was found d

Post by answerhappygod »

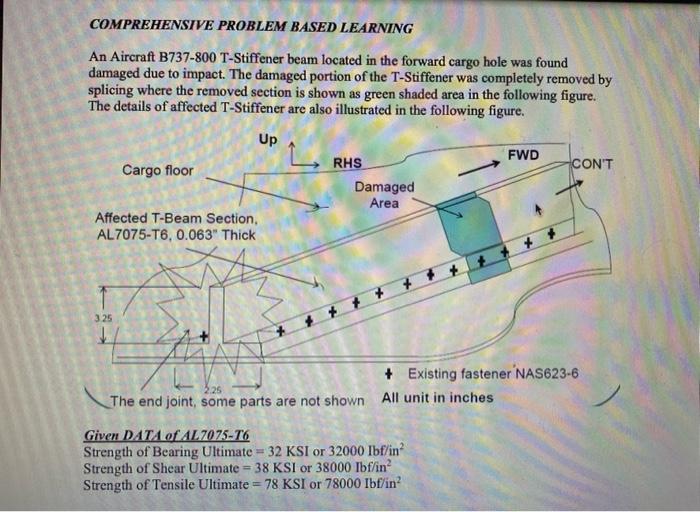

Comprehenshve Problem Based Learning An Aircraft B737 800 T Stiffener Beam Located In The Forward Cargo Hole Was Found D 1
Comprehenshve Problem Based Learning An Aircraft B737 800 T Stiffener Beam Located In The Forward Cargo Hole Was Found D 1 (66.95 KiB) Viewed 24 times
COMPREHENSHVE PROBLEM BASED LEARNING An Aircraft B737-800 T-Stiffener beam located in the forward cargo hole was found damaged due to impact. The damaged portion of the T-Stiffener was completely removed by splicing where the removed section is shown as green shaded area in the following figure. The details of affected T-Stiffener are also illustrated in the following figure. ine end joint, some pars are not snown Given DATA of ALT075-T6 Strength of Bearing Ultimate =32KSI or 32000Ibf/in2 Strength of Shear Ultimate =38KSI or 38000Ibf/in2 Strength of Tensile Ultimate =78KSI or 78000Ibf/in2
