Question 3 - A stringer was found damaged and has been repaired by the installation of a splice as shown in the diagram.

Post by answerhappygod »

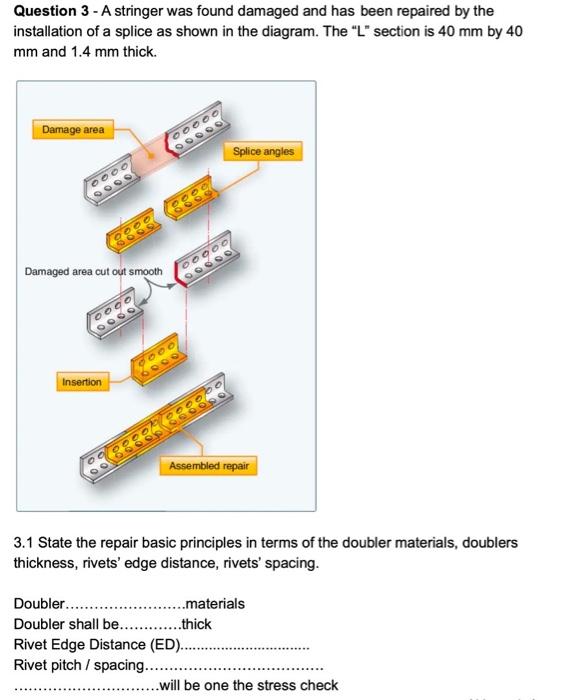

Question 3 A Stringer Was Found Damaged And Has Been Repaired By The Installation Of A Splice As Shown In The Diagram 1
Question 3 A Stringer Was Found Damaged And Has Been Repaired By The Installation Of A Splice As Shown In The Diagram 1 (44.63 KiB) Viewed 29 times
Question 3 - A stringer was found damaged and has been repaired by the installation of a splice as shown in the diagram. The "L" section is 40 mm by 40 mm and 1.4 mm thick. 3.1 State the repair basic principles in terms of the doubler materials, doublers thickness, rivets' edge distance, rivets' spacing. Doubler. materials Doubler shall be thick Rivet Edge Distance (ED). Rivet pitch / spacing. will be one the stress check
